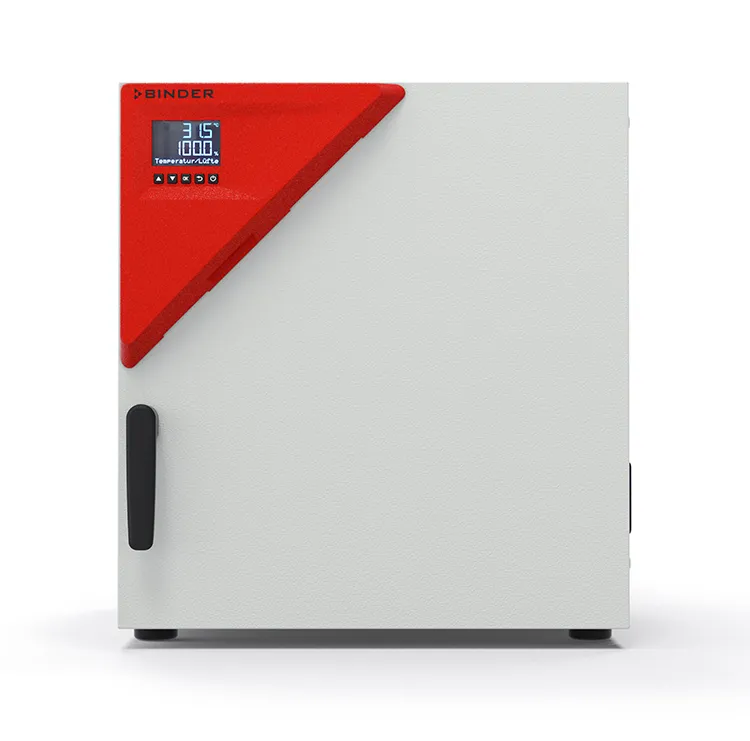

BINDER FP56 Drying & Heating Chamber with Forced Convection & Program Functions | 2.1 cu.ft. | 120V

Item#: 9010-0367
  • Uniform drying conditions thanks to APT.line™ technology
  • Identical test conditions throughout the chamber interior independent of sample size and quantity
  • Outstanding thermal insulation saves operation costs
  • Advanced programming options

$4,022.00 $3,619.80

Add to wishlist
REQUEST PROPOSAL
Supplier:

Performance Data Temperature

  • Temperature range +10 °C above ambient temperature to [°C]: 300
  • Temperature variation at 150 °C [± K]: 1.4
  • Temperature fluctuation at 150 °C [± K]: 0.4
  • Heating-up time to 150 °C [min]: 15
  • Recovery time aer 30 seconds door open at 150 °C [min]: 4

Tabellen

  • Air change (approx.) at 100 °C [x/h]: 80

Electrical data

  • Rated Voltage [V]: 120
  • Power frequency [Hz]: 60
  • Nominal power [kW]: 1.2
  • Unit fuse [A]: 16
  • Phase (Nominal voltage): 1~

Measures

  • Interior volume [cu.ft.]: 2.1
  • Net weight of the unit (empty) [lbs]: 97
  • Permitted load [lbs]: 154
  • Load per rack [lbs]: 66
  • Wall clearance back [in]: 6.3
  • Wall clearance sidewise [in]: 3.94

Internal Dimensions

  • Depth [in]: 15.76
  • Height [in]: 15.76
  • Width [in]: 13.47

Doors

  • Unit Doors: 1

Housing dimensions not incl. fittings and connections

  • Depth net [in]: 22.06
  • Height net [in]: 24.51
  • Width net [in]: 23.48

Environment-specific data

  • Sound-pressure level [dB(A)]: 43

Fixtures

  • Number of shelves (std./max.): 2/5
  • Temperature range: +10 °C above ambient temperature up to +300 °C
  • High temperature accuracy thanks to APT.line™ technology
  • Adjustable fan speed
  • Controller with interval and real-time programming
  • Electromechanical control of the exhaust air flap
  • 2 chrome-plated racks
  • Units up to 115 liters are stackable
  • Class 2 independent adjustable temperature safety device (DIN 12880) and class 3.1 independent temperature safety device (DIN 12880) with visual/acoustic alarm available for selection on the controller
  • Ergonomic handle design
  • Computer interface: Ethernet
  • Internal data logger, measured values can be read out in open format via USB

BINDER Model FP 056 Drying Chamber Data Sheet

Download

BINDER Drying Chambers Brochure

Download
