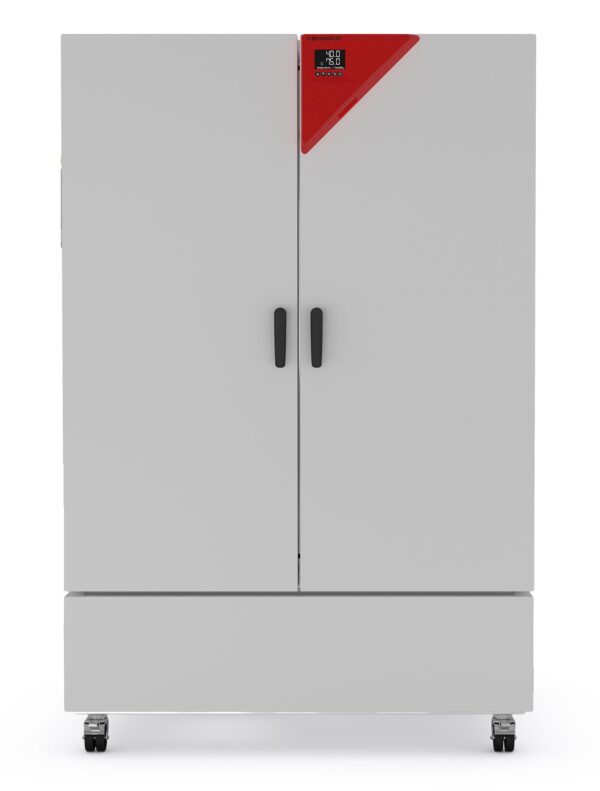

BINDER KB ECO 720UL Cooling Incubators with Environmentally Friendly Thermoelectric Cooling | 24.6 Cu. Ft. (700 L)

Item#: 9020-0427

BENEFITS

  • Safe thanks to uniform incubation, even under full load
  • Reliable thanks to failsafe operation without compromise
  • Intelligent thanks to unit self-test for comprehensive status analysis
  • Economical, as energy consumption is minimal thanks to optimized thermoelectric cooling

$16,006.00 $14,405.40

Add to wishlist
REQUEST PROPOSAL
Supplier:

Performance Data Temperature

  • Temperature range (max. 26 °C under ambient temp): 0°C -70°C
  • Temperature variation at 37 °C [± K]: 0.1°C
  • Max. heat compensation at 37 °C [W]: 500°C
  • Recovery time after 30 seconds door open at 37 °C [min]: 4

Electrical data

  • Rated Voltage [V]: 100/120
  • Power frequency [Hz]: 50/60
  • Nominal power [kW]: 1.3
  • Unit fuse [A]: 16
  • Phase (Nominal voltage): 1~

Measures

  • Interior volume [cu.ft.]: 24.7
  • Net weight of the unit (empty) [lbs]: 600
  • Permitted load [lbs]: 331
  • Load per rack [lbs]: 99
  • Viewing window width [in]: 3.94

Internal Dimensions

  • Width [in]: 38.34
  • Height [in]: 49.3
  • Depth [in]: 22.69

Doors

  • Inner doors: 2
  • Unit doors: 2

Housing dimensions (not including fittings & connections)

  • Width net [in]: 49.3
  • Height net [in]: 75.8
  • Depth net [in]: 34.87

Environment-specific data

  • Energy consumption at 37 °C [Wh/h]: 105

Fixtures

  • Number of shelves (std./max.): 2/15
  • Temperature range: 0 °C through +70 °C (max. 26 °C below the ambient temperature)
  • APT.line™ preheating chamber technology
  • Electric temperature control thanks to thermoelectric cooling module with innovative heat dissipation
  • Inner door made of tempered safety glass
  • Inner chamber made completely of stainless steel
  • 2 rack, stainless steel
  • Access port with silicone plug Ø 30 mm
  • LCD to display temperature along with additional information and alarms
  • Internal data logger, measured values can be read out in open format via USB
  • Unit self-test for comprehensive status analysis
  • Warranty: 2 years parts & labor

BINDER Model KB ECO 720 Refrigerated Incubators Data Sheet

Download
