Performance Data Temperature
- Temperature range: -20 to 100 °C
- Max. heat compensation at 37°C: 450 W

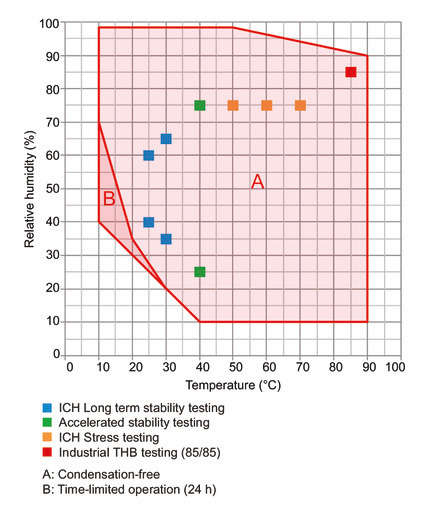

Performance Data Climate
- Temperature range with humidity: 10 to 90 °C
- Humidity range: 10 to 98 % RH
- Temperature uniformity at 25°C and 60% RH: 0.2 ± K
- Temperature uniformity at 40°C and 75% RH: 0.2 ± K
- Temperature fluctuation at 25°C and 60% RH: 0.1 ± K
- Temperature fluctuation at 40°C and 75% RH: 0.1 ± K
- Humidity fluctuation at 25°C and 60% RH: 1 ± % RH
- Humidity fluctuation at 40°C and 75% RH: 1 ± % RH
- Recovery time after door was opened for 30 s at 25°C and 60% RH: 1 min
- Recovery time after door was opened for 30 s at 40°C and 75% RH: 3 min
Electrical data
- Rated Voltage [V]: 208 to 240 V
- Power frequency [Hz]: 50/60
- Nominal power [kW]: 1.9 kW
- Unit fuse [A]: 16
- Phase (Nominal voltage): 1~
Dimensions and weights
- Interior volume [cu.ft.]: 4.48
- Net weight of the unit (empty) [lbs]: 313.06
- Load per rack [lbs]: 55.12
- Permitted load [lbs]: 110.23
- Wall clearance back [in]: 3.94
- Wall clearance sidewise [in]: 3.94

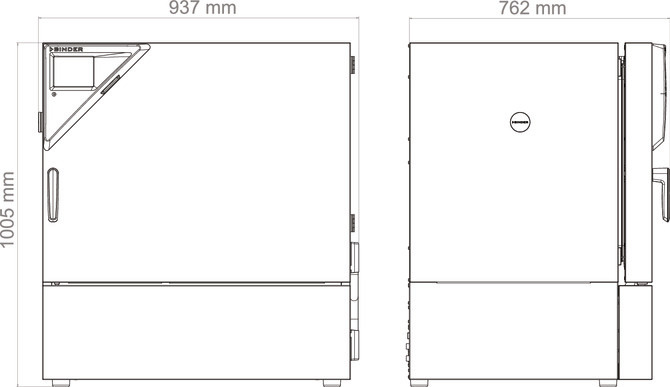

External Dimensions (not including fittings or connections)
- Width [in]: 35.43
- Height [in]: 39.57
- Depth [in]: 27.95
Internal Dimensions
- Width [in]: 25.83
- Height [in]: 19.69
- Depth [in]: 15.20
- Inner Doors: 1
- Unit Doors: 1
Environment-specific data
- Sound-pressure level at 25°C: 46 dB(A)
- Energy consumption at 25°C and 60% RH: 235 Wh/h
- Energy consumption at 40°C and 75% RH: 255 Wh/h
- Energy consumption at 85°C and 85% RH: 345 Wh/h
Fixtures
- Number of shelves (std./max.): 2/6
