Performance Data Temperature:
- Temperature range: 0 to 70 °C
- Max. heat compensation at 40°C: 640W

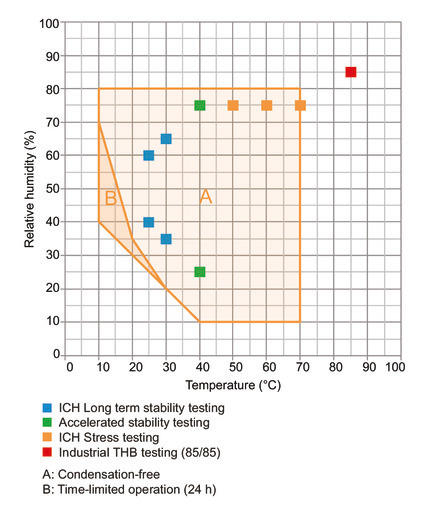

Performance Data Climate:
- Temperature range with humidity: 10 to 70 °C
- Humidity range: 10 to 80 % RH
- Temperature uniformity at 25°C and 60% RH: 0.4 ± K
- Temperature uniformity at 40°C and 75% RH: 0.3 ± K
- Temperature fluctuation at 25°C and 60% RH: 0.1 ± K
- Temperature fluctuation at 40°C and 75% RH: 0.1 ± K
- Humidity fluctuation at 25°C and 60% RH: 1.5 ± % RH
- Humidity fluctuation at 40°C and 75% RH: 1.5 ± % RH
- Recovery time after door was opened for 30 s at 25°C and 60% RH: 2 min
- Recovery time after door was opened for 30 s at 40°C and 75% RH: 6 min
Electrical Data:
- Rated Voltage: 200 to 240 V
- Power Frequency: 50/60 Hz
- Nominal Power: 1.7 kW
- Unit fuse: 16.0 A
- Phase (Nominal voltage): 1~
Dimensions and Weights:
- Interior Volume: 56.86 cu. ft.
- New Weight of the unit (empty): 956.62 lbs.
- Load per rack: 88.18 lbs.
- Permitted load: 220.46 lbs.
- Wall clearance back: 3.94 in
- Wall clearance sidewise: 7.09 in
House dimensions not incl. fittings and connections:
- Width net: 70.67 in
- Height net: 76.81 in
- Depth net: 46.26 in
Internal Dimensions:
- Interior width: 39.80 in
- Interior height: 49.21 in
- Interior depth: 33.35 in
- Inner doors: 2
- Unit doors: 2
Environment-specific data:
- Sound-pressure level at 25°C and 60% RH: 54 dB(A)
- Energy consumption at 25°C and 60% RH: 395 Wh/h
- Energy consumption at 40°C and 75% RH: 460 Wh/h
Fixtures:
- Number of shelves (std./max.): 2/16
