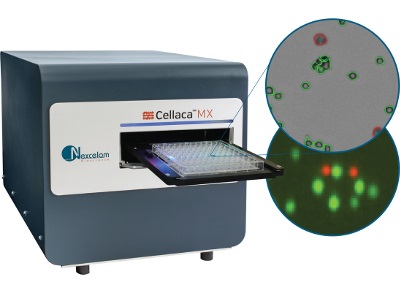

Cellaca MX High-throughput Automated Cell Counter

Item#: Cellaca

High-throughput cell counter with brightfield and two fluorescent channels. Counts 24 samples with fluorescence in 2.5 minutes or less using a plate-based format.

REQUEST PROPOSAL
Supplier:

Cellaca MX Specifications

The Cellaca MX is available in different configurations. Each is field upgradeable to allow your instrument to configure to your experimental needs and quickly drive to deeper cellular insights.

Cellaca MX BF Cellaca MX FL2 Cellaca MX FL5
Channels Brightfield Brightfield, Green, Red Brightfield, Blue, Green, Red, Far Red
Number of Channels 1 4 14
Excitation LED N/A 470, 527 365, 470, 527 and 620 nm
Emissions Filters N/A 534, 655 452, 534, 605, 655 and 692 nm
Commonly Used Compatible Dyes Trypan Blue Trypan Blue, AO/PI Trypan Blue, AO/PI, Hoechst, DAPI, GFP, RFP, CMFDA, Calcein AM, 7AAD, Annexin V
Counting Speed Per 24 Samples 48 seconds Trypan Blue – 48 seconds
Fluorescence – Less than 3 minutes		 Trypan Blue – 48 seconds
Fluorescence – Less than 3 minutes
Volume (per well) 25 µL – 100 µL sample volume
50 µL – 200 µL total well volume		 25 µL – 100 µL sample volume
50 µL – 200 µL total well volume		 25 µL – 100 µL sample volume
50 µL – 200 µL total well volume
Size/Diameter Range 5 – 80 µm 5 – 80 µm 5 – 80 µm
Concentration Range 1×105 – 1×107 1×105 – 1×107 1×105 – 1×107
Fluorescence Upgradeable Yes Yes (add additional colors) N/A
IQ/OQ Option Yes Yes Yes
21 CFR Part 11 Ready Option Yes Yes Yes
Automation Compatible Yes Yes Yes
Operating System Windows 10 Windows 10 Windows 10
Dimensions 13 in x 13 in x 16 in
(33 cm x 33 cm x 41 cm)		 13 in x 13 in x 16 in
(33 cm x 33 cm x 41 cm)		 13 in x 13 in x 16 in
(33 cm x 33 cm x 41 cm)
Weight 40 lbs (18 kg) 42 lbs (19 kg) 42 lbs (19 kg)

The High-throughput Automated Cell Counter that Changes Everything

Your workflow will be streamlined and more efficient when you integrate the Cellaca MX with these capabilities:

  • Batch samples – run up to 24 samples at a time
  • Small sample volume – only 25 µl of cell sample required
  • Autofocus – fast autofocus prior to analysis
  • Cell based assays – data output at a single cell level enables you to do cell-based assays such as apoptosis, mitochondrial membrane potential, protein expression (including GFP and RFP), and reactive oxygen species (ROS)
  • Multiple configurations – choose to add up to five fluorescent filters
  • Automation ready – robotic integration ability with optional API
  • Customizable reports – add graphs, images, charts, and tables
  • Multi-language support – over 7,000 languages available
  • 21 CFR Part 11 ready – optional add-on that includes audit trail, user access control, and digital signature
