Centrifuge 5810/5810R

Item#: 5810-5810R

Eppendorf Centrifuge 5810/5810 R with its renowned quality and reliability offers you the most cost efficient solution for your medium to high-throughput applications – now and in the future. It combines extraordinary versatility and capacity for both tubes and plates with an extraordinary compact footprint. With the new rotor generation the capacity of Centrifuge 5810/5810 R increases to max. 4 × 750 mL (or max. 28 × 50 mL/56 × 15 mL). It is the most compact 3 liter centrifuge currently available.

REQUEST PROPOSAL
Supplier:

Standard Specifications:

  • RCF: 20,913 × g
  • RCF with fixed-angle rotor: 20,913 × g
  • RCF with swing-bucket rotor: 4,500 × g
  • RCF with plate rotor: 3,486 × g
  • Speed: 200 – 14,000 rpm
  • capacity: 4 × 750 mL/4 × 4 MTP
  • Rotors available: 18
  • Acceleration/braking ramps: 10/10
  • Number of programs: 35 user-defined programs
  • Display: large, brightly lit LCD
  • Timer: 1 min to 99 min, with continuous run function, short-spin
  • Volume range: 3L
  • Power supply: 120 V, 50 – 60 Hz
  • Height (with open lid): 80 cm / 31.5 in
  • Max Capacity:
    • Conical tubes- 56 × 15 mL/ 28 × 50 mL
    • Blood collection tubes- 100 × 13 mm/ 80 × 16 mm
    • Plates- 16 × MTP/ 4 × DWP

Additional Specs for 5810 model:

  • Noise level: <70 dB(A)
  • power consumption: 900 W
  • Dimensions (W × D × H): 53.5 × 60.8 × 34.5 cm / 21.1 × 23.9 × 13.6 in
  • Footprint (dimensions w/o front panel, WxD): 54 × 54 cm
  • Weight w/o accessories: 68 kg / 150 lb
  • Cooling: Non-refrigerated
  • Noise Level:
    • Rotor FA-45-6-30 (6×50 mL)- <56 dB(A)
    • Rotor S-4-104 (4×750 mL)- <59 dB(A)

Additional Specs for 5810R model:

  • Noise level: <56 dB(A)
  • power consumption: 1,650 W
  • Dimensions (W × D × H): 70.0 × 60.8 × 34.5 cm / 27.6 × 23.9 × 13.6 in
  • Footprint (dimensions w/o front panel, WxD): 70 × 54 cm
  • Weight w/o accessories: 99 kg / 218 lb
  • Cooling: Refrigerated
  • Temperature control range: -9 °C to 40 °C
  • Noise Level:
    • Rotor FA-45-6-30 (6×50 mL)- <55 dB(A)
    • Rotor S-4-104 (4×750 mL)- <56 dB(A)

Designed to fit in every lab

  • Smallest 3 Liter centrifuge in the market
  • Low lid opening height for use under shelves
  • Quiet to benefit your work environment
  • Low access height for easy loading/unloading
  • Centrifuge lid with soft-touch lid closure

Eppendorf QuickLock® caps for one–hand operation

  • Significantly improved handling, easy operation with one hand
  • Handle allows the closed bucket to be carried to the biosafety cabinet where it can be opened in a safe environment
  • Aerosol-tightness has been tested and verified by Public Health England, Porton Down, UK

Standard Features

  • Swing-bucket rotors and adapters accommodate tubes and bottles from 0.2 mL to 750 mL
  • Plate rotors for centrifugation of all types of MTP, PCR, cell culture, or Deepwell Plates

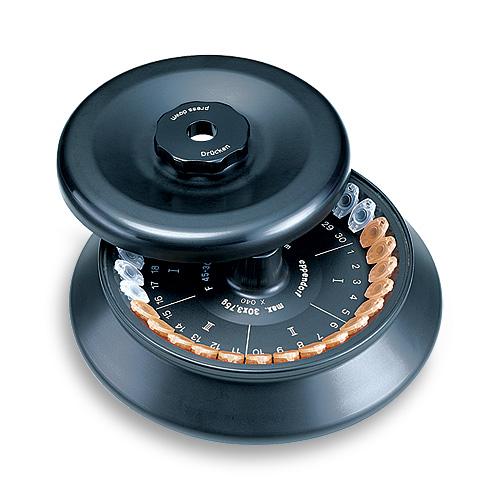

  • Fixed-angle rotors for high-speed applications in tubes from 0.2 mL to 85 mL
  • High centrifugation speed of up to 20,913 × g (14,000 rpm)
  • Aerosol-tight Eppendorf QuickLock® caps and lids for easy, one-hand operation
  • Centrifuge lid with soft-touch lid closure
  • Low access height of 29 cm for easy loading and unloading of samples
  • Quiet operation to improve your work environment
  • Compact footprint saves valuable bench space
  • Automatic rotor recognition and imbalance detection for maximum operational safety

Additional features of refrigerated Centrifuge 5810 R

  • Temperature range from -9 °C to 40 °C
  • FastTemp function for fast pre-cooling
  • Continuous cooling maintains a constant temperature after the run has been completed – your samples stay cool
  • ECO shut-off engages after 8 hours of non-use to reduce energy consumption and to extend compressor life
  • Dynamic compressor control (DCC) technology for optimized cooling performance

Eppendorf Rolling cabinet for Centrifuges 5804/5804 R & 5810/5810 R
