- Max. Storage Capacity:
- 1.2 & 2ml Vials: 42,000
- # of Racks for 100 Cell Boxes: 26
- # of Racks for 25 Cell Boxes: 16
- # of Stages per Rack: 14
- Performance:
- LN2 Capacity: 797 liters
- LN2 Capacity under Tray: 133 liters
- Static Hold Time (Vapor days): 20
- Static Hold Time (Liquid Full days): 118
- Unit Dimensions:
- Neck Opening: 17.5” / 445mm
- Usable Internal Height: 30.8" / 782mm
- Inner Diameter: 38.5” / 978mm
- Overall Height: 63.3” / 1,607mm
- Liftover Height: 39.2” / 995
- Door Width Requirement: 42.0” / 1,067
- Weight Empty: 720 lbs / 327kg
- Weight Liquid Full: 2,140 lbs / 971kg
- Blood Bag Capacities:
- Bag 791 OS/U (25ml): 3,184
- Bag 4R9951 (50ml): 1,687
- Bag 4R9953 (250ml): 768
- Bag 4R9955 (500ml): 576
- Bag DF200 (200ml): 488
- Bag DF700 (700ml): 264

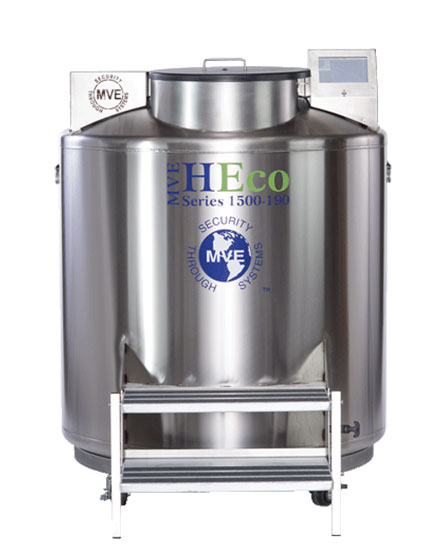

MVE HEco 1542R-190 LN2 Freezer w/ Full Auto Fill & Gas Bypass (Capacity: 42,000 x 2.0ml vials)
Item#: 21093078The MVE HEco 1542R-190 Freezer provides the most efficient cryogenic storage solution with a capacity of up to 42,000 2ml vials. This unit features an all stainless steel construction keeping a controlled temperature of -190°C, a low profile size for less lift-over height and full auto fill and gas bypass plus optional battery backup designed to bring you peace of mind.
- Touch-Screen Controller
- LN2 efficiency
- Fully enclosed wiring and plumbing
- Vacuum jacketed transfer hose
- Dry sample storage
- -190°C top box temperature
- Lowest liftover height
- Single step standard
- Optional double-tier step
- Optional battery backup
- TWO Year Parts Warranty & FIVE Year Vacuum Warranty
Request a Proposal
