- Operational Environment: Indoor use only, +18°C to +26°C (+65°F to +78°F), <70% RH
- Storage Capacity: 49 cu. ft. gross volume, up to 960 plasma boxes with optional 8th drawer
- Dimensions:
- Exterior (WxDxH): 54” x 36 3/8” x 81 ½”
- Interior (WxDxH): 49 1/8” x 26 ½” x 59”

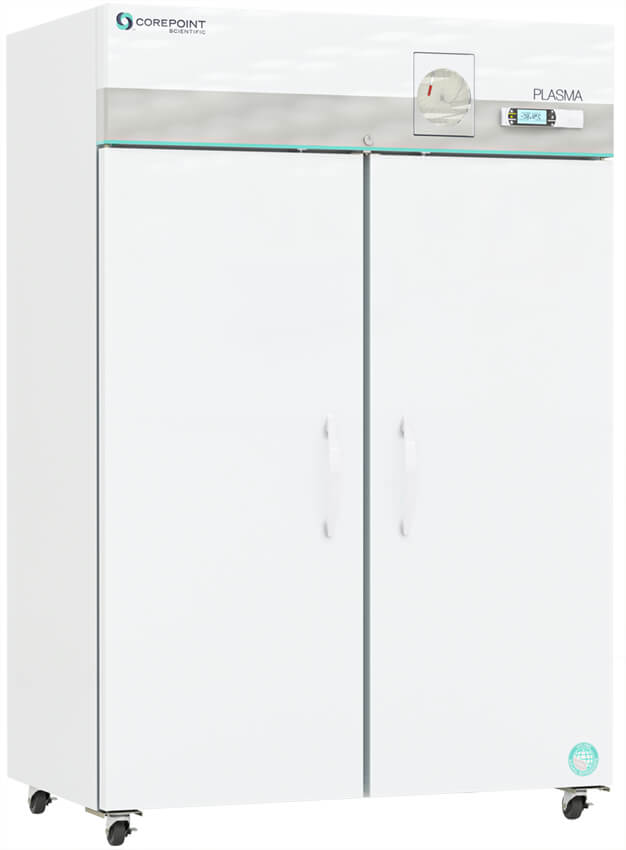

- Door: Two swing solid doors, self-closing, stay position at 100° open, right and left hinged to open from the middle, non-reversible, magnetic sealed gasket, keyed lock
- Drawers: 7 drawers standard per door (14 drawers total) with option for 8th drawer per door (16 drawers total), 304 SS drawers, 65 lb. capacity each
- Mounting & Installation: 4 swivel casters, front casters locking
- Interior Lighting: Shielded, switched LED lighting, full coverage, balanced spectrum
- External Probe Access: Rear wall port (3/4") dia.
- Insulation: Cabinet is foamed-in-place with EPA compliant high density urethane foam
- Exterior Materials: White powder coated steel
- Access Control: Key lock
- General Warranty: Two (2) years parts and labor warranty, excluding calibrations
- Compressor Warranty: Seven (7) years compressor warranty
- Product Weight: 675 lbs. (14 drawers)
- Shipping Weight: 794 lbs. (14 drawers)
- Rated Amperage: 7.6 Amps
- Power Plug/Power Cord: Hospital grade, NEMA 5-15, 9 ft nominal (2.7 m)
- Facility Electrical Requirement: 110-120V AC: 15 A (minimum)
- Agency Listing & Certification: FDA listed Class II medical device, 21CFR part 820 compliant, ETL, CETL Listed (certified to UL471 standard, hydrocarbon refrigerant safety)
- Optional Accessories: Additional 8th drawer per door, Chart paper, Mounting anchor, Upper solid ballast, Lower glycerol bottle kit (factory install only), IQ/OQ/PQ
For performance data please refer to data sheet.
