- Cu. Ft.: 49
- Door(s): Double solid door, self-closing, right and left hinged
- Color: White powder-coated steel exterior and interior
- Temperature Range: -35°C to -15°C
- Exterior Dimensions: 26 7/8"W x 36 3/8"D x 81 1/2” H with casters
- Interior Dimensions: 22”W x 26 1/2”D x 59”H
- Alarm: Audible and visual high/low temperature alarms
- Shelves: 10 adjustable shelves with guard rail on back
- Drawers: Optional pull-out drawers available
- Mounting and Installation: Four preinstalled swivel casters, front casters locking
- Interior lighting: Shielded, switched LED lighting, full coverage, balanced spectrum
- External Probe Access: Rear wall port (3/4") dia.
- Insulation: Cabinet is foamed-in-place with EPA compliant high density urethane foam
- Exterior Materials: White powder coated steel
- Keyed Door Lock
- Electrical Requirements: 115V, 60Hz ; 3 amps ; 1/5 HP
- ETL, C-ETL listed and certified to UL471 standard, hydrocarbon refrigerant safety
- Product Weight: 506 lbs.
- Shipping Weight: 625 lbs.
- Rated Amperage: 7.6 Amps
- Power Plug/Power Cord: NEMA 5-15 plug
- Facility Electrical Requirement: 110-120V AC: 15 A (minimum)
- Two (2) years parts and labor warranty/ Seven (7) years compressor warranty
- Uniformity (Cabinet air): ±0.8
- Stability (Cabinet air): ±2.1
- Maximum temperature variation (Cabinet air): ±2.1
- Energy Consumption (KWh/day): 8.7
- Average Heat Rejection (BTU/hr): 1710
- Noise Pressure Level (dBA): 46 or less installed
- Pull down time to nominal operating temp: 153 min

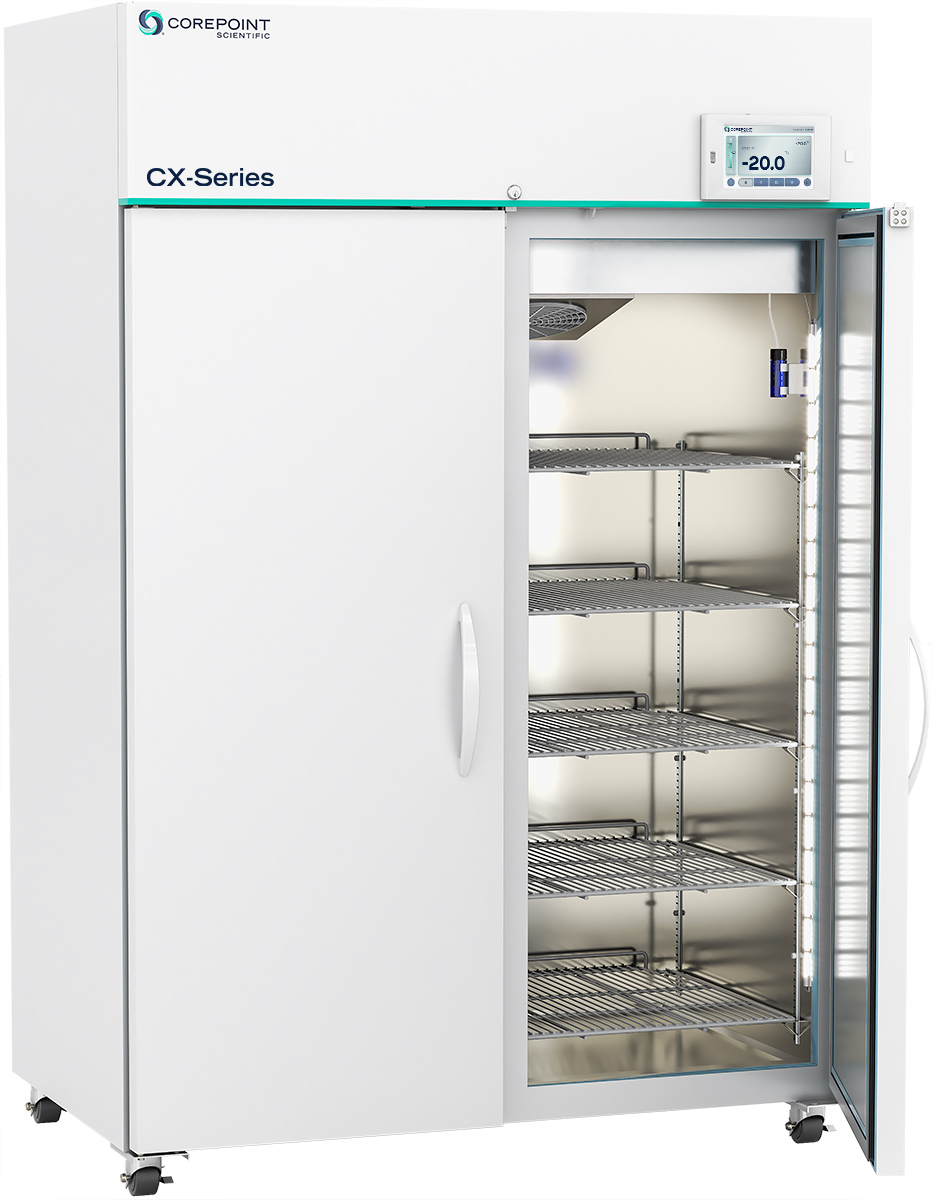

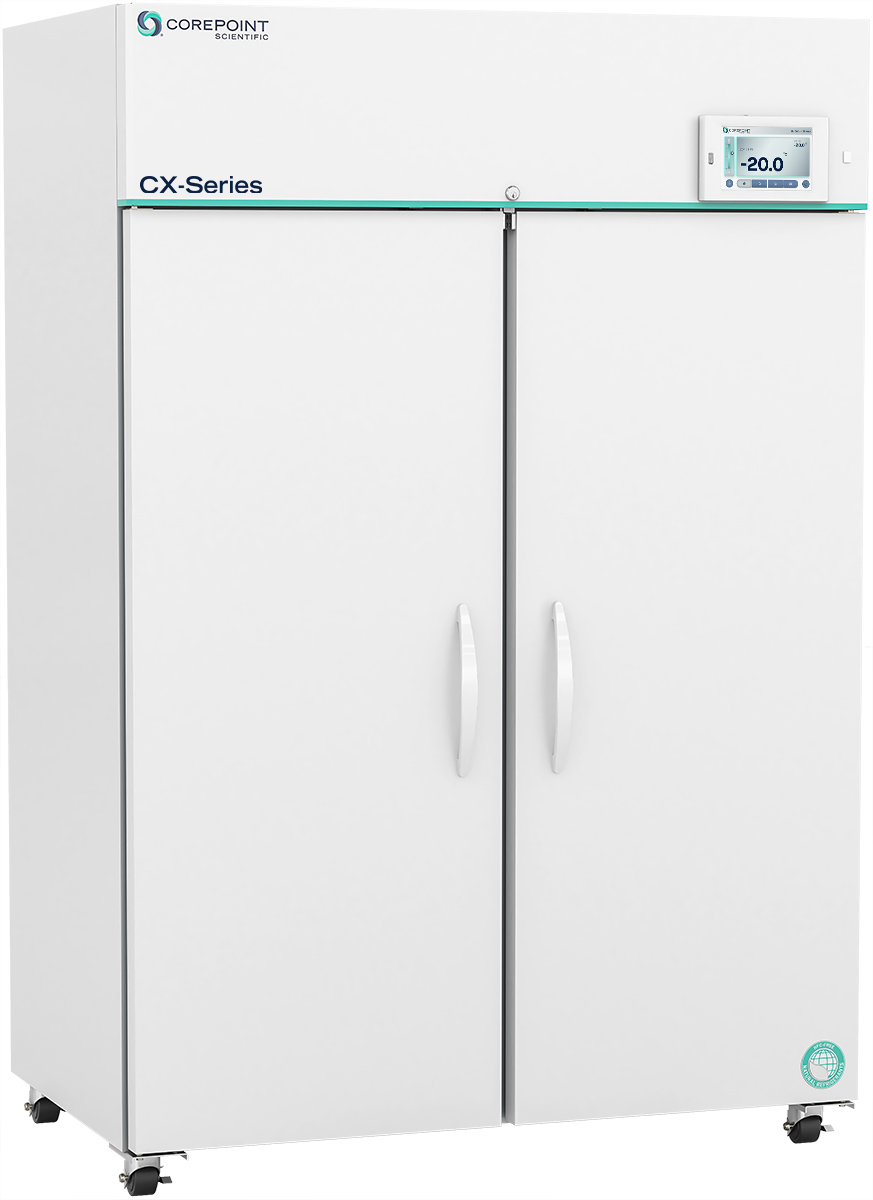

Corepoint Scientific Premium CX Series 49 Cu. Ft. Laboratory Freezer with Touchscreen Controller | Auto Defrost
Item#: CPS-HC-PLF-49-DTSThe Corepoint Scientific Premium CX Series Lab Touchscreen Freezers deliver superior cooling to laboratory environments. Engineered with variable speed compressors (VSCs), these units feature ultra-quiet operation and significant energy savings. VSCs optimize energy consumption by self-adjusting to cooling demands. These compressors also deliver enhanced system performance and provide a longer lifespan than other compressor variations. This touchscreen line showcases our most elite features including state-of-the-art touchscreen controllers, advanced alarm systems and data logging capabilities. All units are powered by microprocessor temperature control. These units also utilize natural, hydrocarbon refrigerants for environmental health and energy efficiency. Upgrade your laboratory with these advanced units and welcome energy savings, noise reduction, smooth operation, and improved system performance to your work environment.
$13,696.00 $10,545.92
- Cycle defrost
- Data Logging and Reporting-
- Customizable Data Capture Intervals: Logs data every 5, 10, or 15 minutes.
- Alarm History with Timestamped Logs: Captures and stores all alarms (door ajar, power loss, temperature deviations).
- Real-Time Graphing-
- View temperature trends over 24 hours or 7 days with zoom/scroll capabilities.
- Statistics Summary: Displays minimum, maximum, average, and number of samples in selected time ranges.
- Compressor: Hermetic, variable speed (VSC). Rated speed range: 2000-4500 rpm
- Refrigerant: EPA SNAP compliant, R290
- Condenser: Anti-fouling tube and grid design, ultra-quiet multi-speed fan
- Evaporator: Fin and tube design, high efficiency fan
- Controller Technology: Proportional Integral Derivative (PID) microprocessor with LCD display
- Battery Backup: 12V high-capacity battery, controller, all alarms active, temperature monitoring DAQ and event logging active on battery backup, touch screen display
- Controller probe: Bottle with glass bead thermal media
- Data Transfer: USB port for temperature and alarm log download. Data and time stamps in .csv and .pdf
- Reliability & Compliance: Battery Reset Reminder: Alerts users to replace the battery proactively. New Power Supply with Low Voltage Shutoff: Reduces risk of damage from power fluctuations.
- Adjustable Temperature Range: -35°C to -15°C
- External Alarm Connection: State switching remote alarm contacts
- Security & Access-
- Multi-Level Password Protection: User, Supervisor, and Admin roles for access and control.
- Automatic Logout: Enhances security by requiring re-login after inactivity.
- Customizable Passwords/PINs: Ensures tailored access for your team.
- Advanced Controls:
- Calibration Adjustments: Fine-tune temperature offsets for precise measurements.
- Defrost Options: Force defrost and cycle settings for freezers.
- Cycle Control: Adjustable intervals and duration for various operational conditions
- Visual & User Interface:
- Intuitive Touch Screen: Pinch-to-zoom, scrollable graphs, and customizable display options.
- Dual Temperature Probes (Optional): Displays readings for up to two zones.
- Adjustable Display Settings: Screen brightness, real-time temperature comparison to alarm points, and selectable °C/°F display with 0.1 resolution.
