- Cu. Ft.: 72
- Exterior dimensions: 81" W x 36 1/4" D x 81 1/2" H with casters; 22 7/8" door swing, 59 1/8 total open depth
- Interior dimensions: 66 3/4" W x 23 3/8" D x 59 1/2" H
- Product Weight: 623 lbs.
- Three solid right and left hinged, self closing, magnetic door gasket for positive seal
- Nine stainless steel, sliding tray shelves
- Six swivel casters (3 1/2”), front casters locking
- Shielded, switched interior LED lighting
- Plenum air distribution
- High density urethane foam cabinet and door insulation
- Probe access port (3/4")
- Temperature Uniformity (Cabinet Air): +/- 1°C from 4°C to 60°C
- Temperature stability: +/- 0.5°C maximum from 4°C to 60°C
- Temperature Control: +/-0.1°C
- Temperature Setpoint Range: 4°C to 60°C
- White-powder coated steel exterior
- Keyed door lock
- 18 months parts and labor warranty
- 5 year compressor warranty
- 115V, 60 Hz, 12.4 Amps
- ETL Listed
- NEMA 5-15P conforms to UL471 requirements
- Shipping weight: 775 lbs.

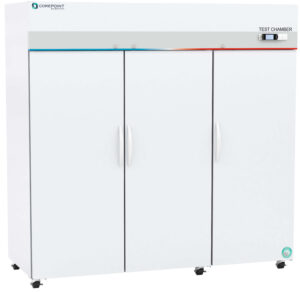

Corepoint Scientific Temperature & Humidity Stability Chamber | Triple Solid Door | 72 Cu. Ft.
Item#: NSRI723WSW/0HEnsure the quality and durability of your products with Corepoint® Scientific Humidity Stability Chambers. These chambers provide a controlled temperature environment to deliver superior product testing that meets ICH Q1A standards. Improve product quality, test packaging, increase shelf life, and enhance safety with these chambers. With natural refrigerants and ultrasonic humidification, these units feature some of the most advanced technology in the industry.
$39,946.00 $33,954.10
- Proportional integral derivative (PID) controller with LCD display, °C/°F switchable
- Battery backup- controller
- RS-485 communication (MODBUS)
- USB data port
- Adjustable Temperature Range: 4°C to 70°C
- External alarm connection: State switching remote alarm contacts
- Alarms: Visual alarm indicator, audible alarm indicator, process phase specific temp alarm, process phase specific humidity alarm, power failure alarm, sensor failure alarm
- Programmable ramp and soak
- Process phase graphic animations
- Real time clock
- Event logs: 100
- Top mounted, variable speed compressor
- EPA SNAP compliant, R290
- RH sensor Type: Capacitive
- Temp sensor type: NTC
- Multi-element, independent proportional electric heating, condensate evaporation
Request a Proposal
