Doble QWick 17/2400 CryoShipper with (6) 11″ Canisters (Capacity: 2,400 x 1/2cc Straws)

Item#: 14275620

The MVE Doble QWick Series utilizes an absorbent wicking material that charges with liquid nitrogen in fewer than two hours, providing the capacity for same-day vapor shipping. A unique absorbent layer in the base of the storage tanks enables them to be charged with nitrogen and employed as dry shippers.  Once at the final destination, the tanks can be filled with liquid and used for long term storage, therefore avoiding the need for return shipments. Equipped with the same capacity and dimensions as the comparable Doble Series.  Protective shipping container not included.



This model is compliant to IATA Dangerous Goods Panel (DGP) Special Provision A152 for transportation of non-infectious biological samples.

REQUEST PROPOSAL
Supplier:
  • Neck Opening: 3.81" (97mm)
  • Overall Dimensions (Height x Diameter): 22" x 18.2" or 559mm x 462mm
  • Shipping Weight: 34 lbs. (16 kg)
  • (6) 11" canisters

Performance:

  • Liquid Nitrogen Capacity: 28 L
  • Vapor Capacity: 8.4 L
  • Static Evaporation Date: 0.35 L/day
  • Normal Working Duration for Liquid: 50 days
  • Normal Working Duration for Vapor: 17 days
  • Durable composite lid design
  • High strength neck tube reduces liquid nitrogen loss
  • Strong, lightweight aluminum construction
  • Advanced chemical vacuum retention system
  • Hydrophobic liquid nitrogen absorbent system

Chart MVE Accessories Catalog

Download

You may also like…

  • Transfer Hose for MVE LN2 Systems (6′ x 1/2″ Dia.)

    Item #: 9713109 $301.00 $255.85 VIEW PRODUCT

  • Transfer Hose with Medium Sized Phase Separator for MVE LN2 Systems (use with discharge device)

    Item #: 14044151 $187.00 $158.95 VIEW PRODUCT

  • Transfer Hose for MVE LN2 Systems (4′ x 1/2″ Dia.)

    Item #: 9713159 $226.00 $192.10 VIEW PRODUCT

  • Phase Separator with Rigid Discharge Device Nozzle for MVE LN2 Systems

    Item #: 11734421 $205.00 $174.25 VIEW PRODUCT

  • Small Aluminum Dewar Phase Separator for MVE LN2 Systems (11/16″ x 1 1/2″)

    Item #: 10615885 $67.00 $56.95 VIEW PRODUCT

  • 11″ Canister for XC 22/5, Doble QWick 17/2400 & Doble 28 Series Liquid Nitrogen Systems

    Item #: 9719349 $64.00 $54.40 VIEW PRODUCT

  • Medium Aluminum Dewar Phase Separator for MVE LN2 Systems (1 5/16″ x 3″)

    Item #: 10615877 $120.00 $102.00 VIEW PRODUCT

  • Protective Shipping Container for Doble 28 Series, Doble QWick 17/2400 & Cryo Moover Liquid Nitrogen Systems

    Item #: 11930861 $965.00 $820.25 VIEW PRODUCT

  • Cool Reach for Retrieving Ampules and Canes

    Item #: 13051579 $280.00 $238.00 VIEW PRODUCT

  • Replaceable Neck Cork for Doble 28 Series and Doble QWick 17/2400 Liquid Nitrogen Systems (Dewar Neck Opening Diameter: 3.81?)

    Item #: 11778299 $115.00 $97.75 VIEW PRODUCT

  • Large Aluminum Dewar Phase Separator for MVE LN2 Systems (1 5/8″ x 4″)

    Item #: 10615869 $236.00 $200.60 VIEW PRODUCT

  • Transfer Hose with Small Sized Phase Separator for MVE LN2 Systems (use with discharge device)

    Item #: 14044143 $145.00 $123.25 VIEW PRODUCT

Request a Proposal

Related Products

  • Doble 28 Aluminum Cryogenic Dewar/Cryoshipper with QWick Technology (Capacity: 810 x 2.0 ml vials)

    Item #: 11527730 $2,502.00 $2,126.70 VIEW PRODUCT

  • XC 21/6 Cryogenic Freezer with (9) 11″ Canisters (Capacity: 3870 x 1/2cc Straws)

    Item #: 9920579   VIEW PRODUCT

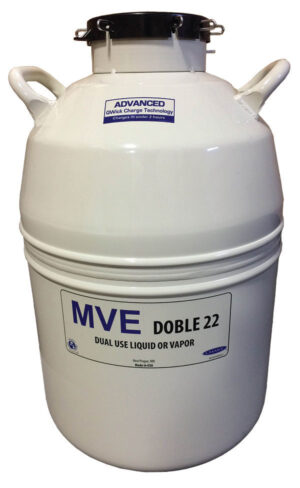

  • MVE Doble 22 Aluminum Cryogenic Dewar/Cryoshipper with QWick Technology (Capacity: 810 x 2.0 ml vials)

    Item #: 20937586 $2,362.00 $2,007.70 VIEW PRODUCT

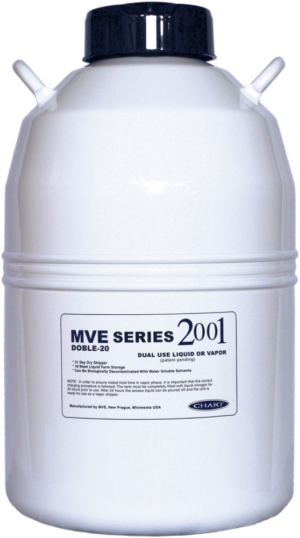

  • Doble 20 Aluminum Cryogenic Dewar/Cryoshipper with QWick Technology (Capacity: 210 x 2.0 ml vials)

    Item #: 11492151 $1,530.00 $1,300.50 VIEW PRODUCT

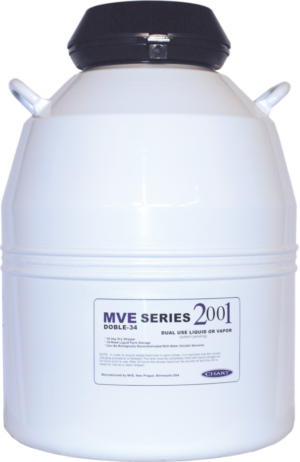

  • MVE Doble 34 Aluminum Cryogenic Dewar/Cryoshipper with QWick Technology (Capacity: 630 x 2.0 ml vials)
