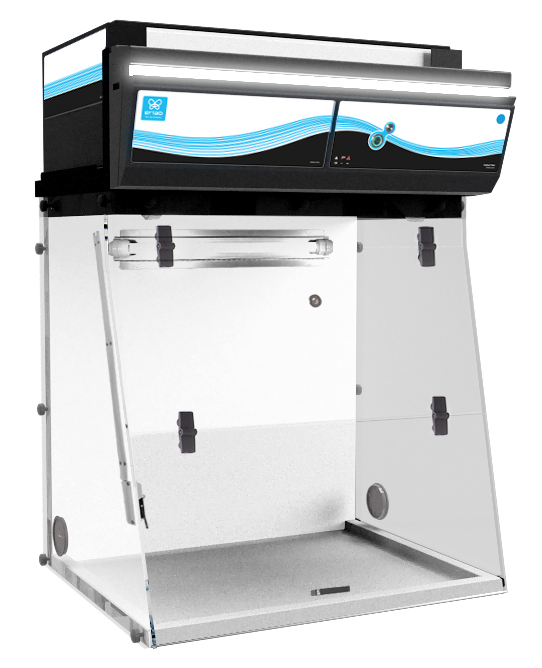

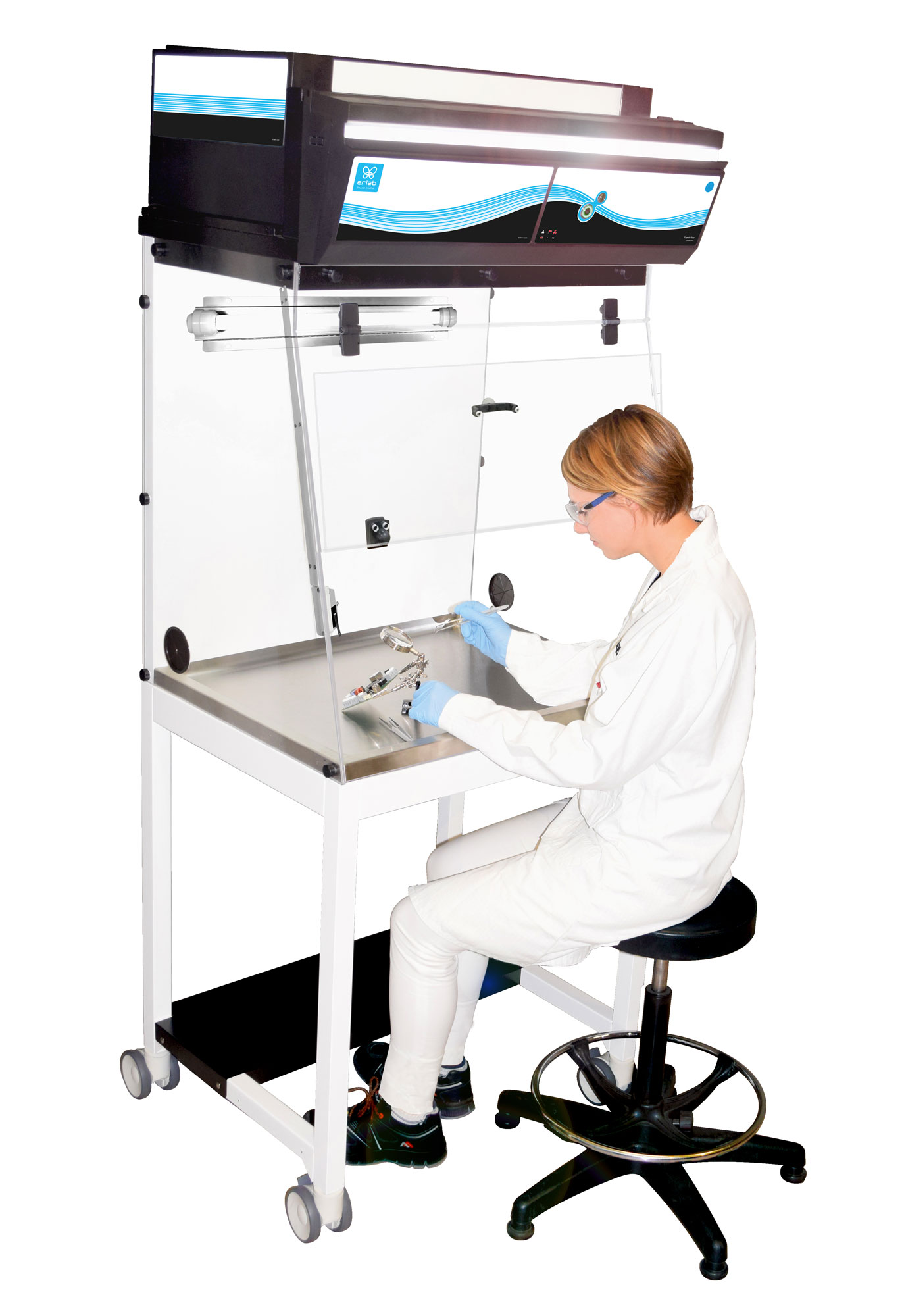

Erlab Captair 321 Smart Ductless Fume Hood

Item#: 321SMART
The Captair Smart 321 ductless fume hood is designed to protect users during applications that emit harmful vapors/chemical particles. The featured Smart Technology provides a simple & innovative way of communication to quickly see that the hood is operating safely so you can focus your attention on what is most important: your work. The ductless hood provides its own filtration process without having to release any pollutants that are harmful to the environment or the user.
REQUEST PROPOSAL
Supplier:
  • External Dimensions: 30¾”W x 24 3/8”D x 43 ¾”(min) 50 5/8”(max)H
  • Air Flow: 129 CFM
  • Air Face Velocity: 0.4 to 0.6 m/s - 79 fpm to 118 fpm
  • Filtration Module: Polypropylene
  • Internal Lighting: 650
  • Sash Openings: Oblong
  • Structure: Corrosion resistant electro-galvanized steel coated with anti-acid polymer
  • Side & Front Panels: Chemical resistant acrylic
  • Voltage/Frequency: 220 V/50-60 Hz
  • Total Power Consumption: 65 Watts
  • Safety Standards: AFNOR NFX 15 211/ANSI Z9.5-2012 filtration efficiency standard (class 1 and 2)

Safer to operate

  • Erlab’s advanced carbon filtration technology and/or HEPA/ULPA accommodates your specific needs
  • Meets AFNOR NF X 15 211/ANSI Z9.5-2012 filtration efficiency standard (class 1 and 2)
  • Sensors that detect filter breakthrough of solvents, acids or formaldehyde
  • Safety back up filter in case of main filter saturation
  • Continuous monitoring of Air face velocity
  • Erlab Safety Program: application analysis and validation, usage certification, filter change reminders
  • Connect with eGuard for real-time status, notifications and alerts

Simpler to use

With Smart Technology, you can easily see that the hood is operating safely. Should the light pulse you are notified that:

  • Containment has been compromised or,
  • The filter has breakthrough or,
  • There is a Fan failure

Flexibility

  • The configurable filtration column will accommodate application changes
  • No ductwork needed. This allows you to move the hood anywhere.

Savings

  • No ductwork cost
  • Annual energy costs decreases significantly
  • Energy savings outweigh filter replacement costs.

Environment

  • No dangerous chemical released into the atmosphere
  • Low energy consumption
Optional Accessories:
  • Work Surfaces: TRESPA® TOPLABPLUS, Glass or 304L Stainless Steel
  • Molecode: Detection sensor: Type S, for solvents / Type A, for acids / Type F, for formaldehyde
  • Benches: Rolling cart (Mobicap) or fixed bench (Benchcap)
  • Particulate Pre-filter: Protects the main filter(s) from dust
  • Transparent Back Panel: Clear acrylic panel for easy viewing

Erlab Captair 321 Smart Ductless Fume Hood Literature

Download

Erlab Captair 321-391-481-Smart Assembly Instructions

Download

Weighing in a Filtered Fume Hood - Erlab Ductless Fume Hood White Paper

Download
