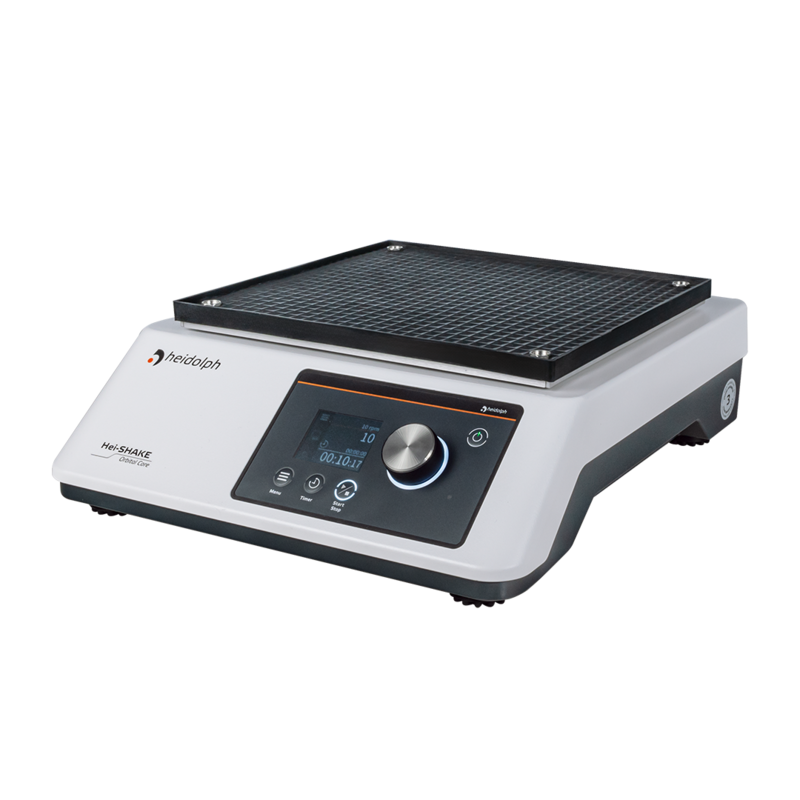

Heidolph Hei-SHAKE Orbital Core Shaker

Item#: 036130600

The Heidolph Hei-SHAKE Orbital Core Shaker offers everything your lab desires. From a unique, very wide range of rotation speeds (1 to 530 rpm) to the timer (1 min to 999 h 59 min) and an integrated RS 232 interface, the Hei-SHAKE Orbital Core has all the core functions required for the realization of any shaking application in the laboratory.

With a 20 mm shaking diameter (orbit), we guarantee a homogeneous distribution of your media. Your applications can be carried out in continuous operation or using a timer. Device control and semi-automated processes can be carried out remotely by connecting to a PC or via server-based software, e.g. Hei-PROCESS. In addition, the automatic restart, e.g. after power failures, can be set via the user-friendly menu structure.

$3,367.53 $3,199.15

Add to wishlist
REQUEST PROPOSAL
Supplier:
  • Dimensions (W × H × D): 15.01" x 5.08" x 15.87" (356 × 129 × 403 mm)
  • Weight: approx.: 30.86lbs (14 kg)
  • Maximum permissible load: max. 15 kg (33.07lbs)
  • Drive: EC motor
  • Speed range: 1 – 530 rpm
  • Protection class: I
  • Acoustic pressure: < 85 dB (A), in accordance with IEC 61010
  • Rated voltage: 100 – 240 V, 50/60 Hz
  • Protection class: I
  • Overvoltage category: n.a.
  • Degree of pollution: n.a.
  • Power input: 90 W
  • Operating temperature: 5 °C – 31 °C up to 80 % rel. humidity | 32 °C – 40 °C up to 50 % rel. humidity (decreasing linearly)
  • Installation altitude: up to 2,000 m asl
  • Overheat protection: n.a.
  • Speed control: n.a.
  • Usable area: 11.57" x 10.35" (294 × 263 mm)
  • Movement: orbital
  • Orbit: 20 mm
  • Fuse: n.a.
  • Permissible mains voltage fluctuations: n.a.
  • Bottle dimensions: n.a.

Hei-SHAKE Orbital Core Datasheet

Download

Hei-SHAKE Orbital Core Operations Manual

Download
