Lab Companion ISS-7200R Stackable Incubated Shaker (Refrigerated)

Item#: AAH239215U
Multi-purpose incubated shakers from Lab Companion feature a wide range of temperature control and large chamber volume with the ability to stack up to 3 units for maximum utilization of lab space.
Please note: Platform, clamps and stacking kit are not included in price and must be purchased separately

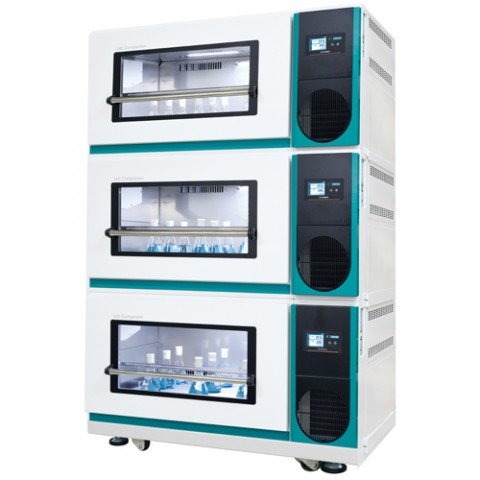

Please Note: image shown includes additional accessories not included with purchase

$15,266.00 $14,502.70

Add to wishlist
REQUEST PROPOSAL
Supplier:
  • Volume (L / cu ft): 198 / 7.1
  • Platform (W×D, mm / inch): 755×520 / 29.7x20.5
  • Interior (W×D×H, mm / inch): 809×624×393 / 31.9×24.6×15.5
  • Exterior1) (W×D×H, mm / inch): 1310×996×755/ 51.6x39.2x29.7
  • Net weight (kg / Ibs): 375 / 826.7
Performance
  • Temperature range: Ambient -20°C to 80°C
  • Competitive high shaking speed from 30 to 300 rpm (stackable : 30 to 200)
  • Orbital shaking motion in 19.1mm diameter. 50.8 mm
  • Microprocessor PID control.
  • Three point temperature calibration / Automatic tuning.
  • Wide speed range even with heavy workload.
    • Ideal DD(Direct Drive) brushless motor and triple cam system support heavy load, quiet, maintenance free operation and deliver high torque at high speeds and smooth rotation.
  • Best effort run function intelligently manages its rpm to keep shaking even workload is out of its capacity.
    • Automatic shaking speed adjustment in case of excessive workload such as unbalanced load placement, unusual vibrations caused from unstable floor or external shock.
  • Pleasant test environment by the smooth acceleration and deceleration control.
    • Smooth start and smooth stop function prevents chemical spills from flasks or test tubes.
  • High-velocity fan ensures uniform temperature distribution and rapid thermal recovery after door open.
  • Air-tight silicone door seal to provide excellent temperature uniformity.
Features:
  • Intuitive touch screen LCD controller with easy icons and logical menus.
  • Easy-set digital timer for shaking operation. (1 min. to 999 hr. 59 min.)
  • Wide sample monitoring.
  • Clear observation of samples without affecting inner chamber’s environment thanks to the transparent viewing window with bright LED lamps.
  • Repetitive task can be easily performed as the platform stops where it starts.
    • Stopping the shaking platform always at the same position is highly beneficial for automated dosing or sampling process.
  • Two adjustable-height shelves provided allow static incubation or refrigeration, which increase storage capacity.
  • Built-in electrical outlet with a safety cover inside the chamber.
  • Corrosion resistance stainless steel interior.
  • Easy-access drain system with a quick disconnect valve offers great convenience to clean up of spills.
  • Built-in RS-232 port and USB port for external control and data collection.
  • The unit comes with retractable foot caster, beneficial for easy mobility during installation or relocation.

Jeiotech ISS-7000 Series Stackable Incubated Shakers Literature

Download

Lab Companion ISS-7000 Series Stackable Shaking Incubators Operation Manual

Download
