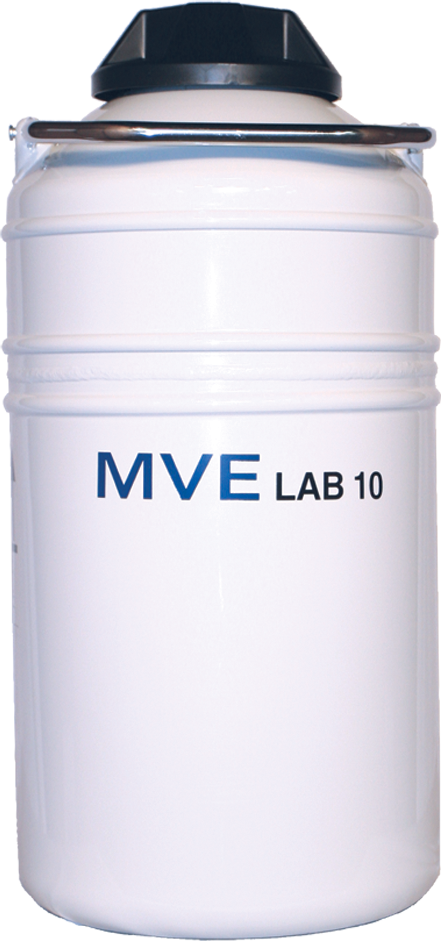

LAB 10 Aluminum Cryogenic Dewar (10L)

Item#: 10740281

The MVE LAB Series cryogenic liquid dewars get their name from their acceptance in laboratories and medical facilities worldwide.  These high-efficiency, super insulated dewars are the most convenient, economical way to store and dispense liquid nitrogen.  Many lab units can be fitted with pouring spouts, pressurized dispensing devices or dipper to aid in the transfer of liquid nitrogen.



Due to part supply issues in the cryogenic industry, this product has an extended lead time.  Please inquire for details.

$943.00 $801.55

Add to wishlist
REQUEST PROPOSAL
Supplier:
  • Performance
    • LN2 Capacity L: 10
    • Static Evaporation Rate* L/day: 0.18
  • Unit: Dimensions
    • Neck Opening in. (mm): 2.18 (56)
    • Usable Height in. (mm): 13.5 (343)
    • Overall Height in. (mm): 21.5 (546)
    • Outer Diameter in. (mm): 10.3 (260)
    • Internal Diameter in. (mm): 8.3 (210)
    • Weight Empty lb. (kg): 12 (5.4)
    • Weight Full lb. (kg): 31 (14)
  • Designed for large capacity storage
  • Low liquid nitrogen consumption
  • Convenient lightweight package
  • Durable, tamper-proof lid design
  • High strength neck tub reduces liquid nitrogen loss
  • Strong light weight aluminum construction
  • Advanced chemical vacuum retention system
  • Spider design on platform for easy retrieval and insertion of product canisters

MVE Lab Series Spec Sheet

Download

MVE Lab Series Literature

Download

MVE Accessories Catalog

Download

MVE Liquid Nitrogen Dewars User Manual

Download
