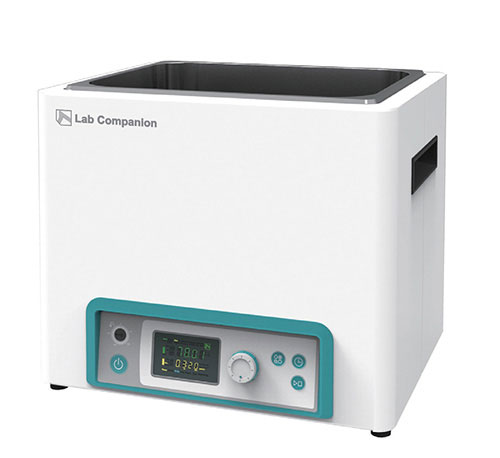

Lab Companion BW3-05G Heating Bath (3.5L)

Item#: AAH41306U

General Type representative water bath with advanced features and specifications.

  • Temperature calibration & timer.
  • Low solution level limiter.
  • 120V 50/60Hz 22lbs 14.0 x 10.2 x 13.1 5L (0.2cu ft)

$1,198.00 $1,138.10

Add to wishlist
REQUEST PROPOSAL
Supplier:
  • Bath volume (L / cu ft): 3.5 / 0.1
  • Temperature
    • Working temp. range (℃ / ℉): Amb. +7 to 100 / Amb. +12.6 to 212
    • Temp. stability at 50℃ (±℃ / ℉): 0.4 / 0.72
    • Heat up time to 70℃ (min): 34
  • Dimension
    • Bath opening / depth (W x L, D) (mm / inch): 240 x 136 x 150 / 9.4 x 5.4 x 5.9
    • Exterior (W x L x H) (mm / inch): 307 x 200 x 264 / 12.1 x 7.9 x 10.4
    • Net weight (kg / lbs): 6.5 / 14.3
  • Electrical requirements (120V, 60Hz, A): 5.8
  • Plug Type: Type B l NEMA 5
  • Cat. No.: AAH41306U

Structural Functional Features

  • Drain valve for easy draining of bath solution.
    (except for BW3-05G model)
  • Convenient structure for sample handling with device control part located on the inside.
  • Convenient for carrying and moving with handles on the left and right sides.
  • The internal bath is integral structure. It is made of stainless steel and has excellent durability.
  • Compact design for excellent space utilization

Use Convenience Features

  • Clear VFD panel for clear information display.
  • Microprocessor PID method for precise temperature control.
  • Optimized temperature control with temperature auto-tuning.
  • 3-point calibration function minimizes temperature difference.
  • Wait On/Off timer. (up to 99 hours 59 minutes)
  • Save and use 3 frequently used temperatures.
  • Automatic restart of operation when power is restored after sudden power failure.

Outstanding Safety

  • Top-rated overheating prevention system.
    (registration 10-0397583)
  • Over temperature limit function.
  • Safe structure in which the heater, sensor, and pump inside the bath are separated by covering plates.
  • Malfunction prevented by controller lock function.
