Lab Companion ISS-4075R Incubated Shaker (150L / 5.3 cu ft)

Item#: AAH23715U
  • Double-stacked for space saving.
  • Also, easy to use a general incubator.
  • 120V, 60Hz

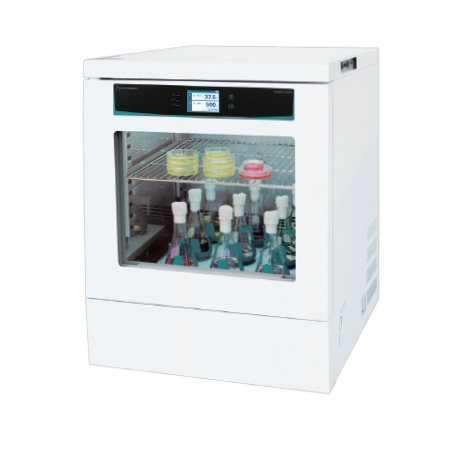

Please Note: image shown includes additional accessories not included with purchase

$12,627.00 $11,995.65

Add to wishlist
REQUEST PROPOSAL
Supplier:
  • Chamber volume (L / cu ft): 150 / 5.3
  •  Temperature-
    • Range (℃ / ℉): Amb. -20 (Min. 4) to 80 / Amb. -36 (Min. 7.2) to 176
    • Fluctuation at 37℃ (±℃ / ℉) in flask: 0.1 / 0.18
    • Variation at 37℃ (±℃ / ℉) in flask: 0.5 / 0.90
    • Refrigerator (Hp): 1/6
  • Shaking System-
    • Motion Type: Orbital
    • Amplitude size (mm / inch, dia.): 19.1 / 0.75
    • Speed range (rpm): 20 to 500 (stackable: 20 to 250)
    • Speed stability (rpm, %): ±1
    • Timer (count-down): 999 hr 59 min.
    • Max. Speed per permissible Load (rpm)
      • 500 (max. 10kg / 22.0 lbs)
      • 400 (max. 15kg / 33.1 lbs)
      • 250 (max. 15kg / 33.1 lbs) - (stacked)
  • Dimensions-
    • Platform (W×D): 450 x 450mm / 17.7" x 17.7"
    • Exterior (W×D×H): 540 x 540 x 518mm / 21.3" x 21.3" x 20.4"
    • Interior (W×D×H): 678 x 895 x 934mm/ 26.7" x 35.2" x 36.8"
    • No. of wire shelf (standard / max.):  2 / 11
    • Net weight (Kg / lbs): 190 / 418.9
  • Electrical requirements (120V, A): 60Hz, 13

Structural Functional Features

  • Best space-efficient model with double stacking.
  • Up to 80°C, 500rpm enables setting of various experimental conditions.
  • Utilized as an incubator using the shelves.
  • Three operating modes: Temperature & Shaking, Temperature, or Shaking.
  • Includes internal power outlet.
  • Shaking structure with minimized vibration.

Use Convenience Features

  • Accurate rpm and temperature control through temperature auto-tuning / microprocessor PID and calibration.
  • Monitor via mobile app anytime, anywhere with LC Connected. (mobile monitoring system)
    (when purchased LC GreenBox)
  • Countdown timer (999 hours 59 minutes) of shaking operation.
  • Intuitive operation with color touch display.
  • High brightness / low-power LED illumination makes it easy to observe inside.
  • Spill drain port for internal cleanliness and easy maintenance.

Outstanding Safety

  • Electronic over temperature protection system. (advanced over temperature (A-OT) limiter) Independent precision temperature sensor and controller provides more secure and reliable over temperature protection.
  • Conventional over-temperature protection system. (B-OT, backup over temperature limiter) A backup device against electronic system failure, mechanically preventing over temperature even when there are electronic errors.
  • Soft start and stop shaking function.
  • Malfunction prevented by controller lock function.
  • Displays all information such as device operation and error occurrence.
  • Overcurrent protection device restricts operation when objects are caught inside the system and shaking is not possible.

Smart Self-diagnosis

  • Real-time self-diagnostics to check equipment for abnormal conditions.
  • Alarm is generated by monitoring difference between actual rpm/temperature and set rpm/temperature.
  • Automatic rpm adjustment when device instability occurs. (high rpm, overload, weight imbalance, etc.)
  • Detects abnormal conditions relating to the platform on which the sample is placed and stops the operation.
  • Automatic restart as it was operated after power recovery.
