- Chamber volume (L / cu ft): 110 / 3.88
- Temperature Range (℃ / ℉): Amb. +15 to 250/ Amb. +59 to 482
- Temperature Fluctuation at 100℃ (±℃ / ℉): 0.5 / 0.90
- Temperature Variation at 100℃ (±℃ / ℉): 3.6 / 6.48
- Temperature Heating time to 100℃ (min.): 22
- Temperature Recovery time at 100℃ (min.): 10
- Control Panel: 3.5 inch TFT Color LCD
- Communication Interface: USB-B, RS-232 (option)
- Function: Recently event record: 12 ea
- Exterior Dimensions (W x D x H, mm / inch): 663 x 677 x 859 / 26.1 x 26.65 x 33.82
- Interior Dimensions(W x D x H, mm / inch): 441 x 420 x 597 / 17.36 x 16.54 x 23.5
- Net Weight (kg/lbs): 63 / 138.9
- Shelves: 2 standard/ 8 max
- Max load per shelf: 20kg/ 44.09lbs
- Number of air change per hour at 100℃: 16
- Electrical Requirements (120V, 60Hz, A): 10.9

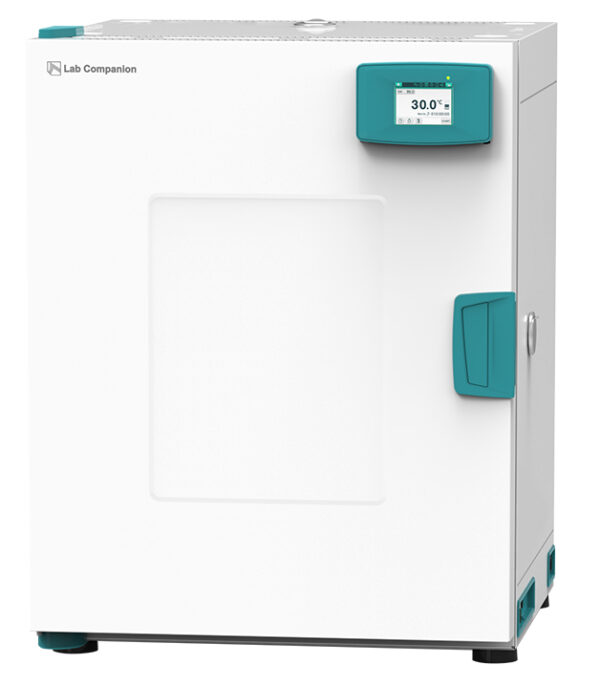

Lab Companion ON4-10S Standard Natural Convection Oven | 3.88 cu. ft.
Item#: AAH15076UThe Lab Companion ON4-S Standard Natural Convection Ovens deliver precise temperature control up to 250°C with uniform heat transfer (±3.6°C at 100°C). These ovens feature an intuitive 5-inch touchscreen controller that simplifies operation, while advanced safety features include overheating prevention, IEC Class II compliance, and effective fume removal. Convenient options like RS-232/USB connectivity, LC GreenBox monitoring, and 21 CFR Part 11 compliance streamline data management and GMP audits. The oven logs 12 recent events, offers space-saving stackability, and features a Hands-free™ door for added convenience during sample handling.
$2,398.00 $2,278.10
Intuitive Large Touch Controller
- Intuitive interface with 5-inch display.
- 'Wait on / Wait off' timer function.
Reliable Temperature Control Performance
- Wide temperature range of up to 250℃.
- Temperature accuracy for wide range by 3-point calibration.
- The upper and lower temperature limits can be set, enabling alerts for deviations to trigger quick actions.
- Uniform temperature distribution through airflow optimized for uniform heat transfer. (within ±3.6 ℃ at 100℃)
Convenient Experiment and Data Checking

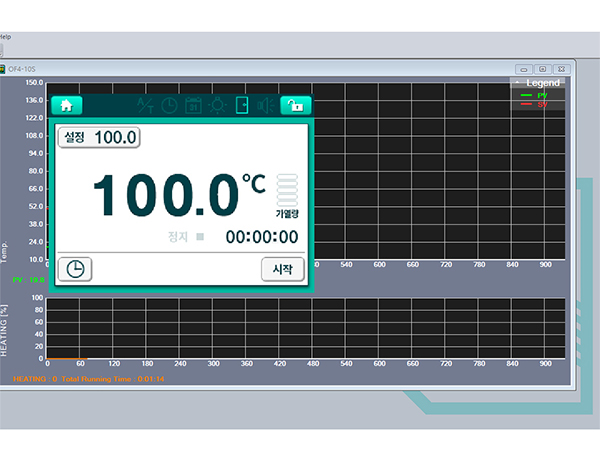

- Support RS-232/USB port and software making easy operation and data management from PC. (option)
- Monitor and control anywhere, anytime with LC GreenBox. (Mobile Monitoring System, option)
- Monitor the temperature on BMS (Building Management System) for quick responses to abnormalities. (option)
- Integrated with 21 CFR Part 11 compliant LC DataKeeper, suitable for GMP audits. (option)
Ensuring User Safety
- Effectively removes fumes from the inside of the chamber via the top vent hole. (ON4-03)
- Safe surface even when operating at max temperatures. (less than 70℃ at 250℃)
- Implemented with the top-rated overheating prevention system. (Patent 10-0397583)
- Over Temperature Limiter.
- Complaint to IEC Class II protection standards and temperature protection in line with DIN 12880 Class 3.1.
Convenient Structural Functions
- Logs the last 12 events, including run times, stops, and errors.
- Double stackable with stacking set (option) maximizes space utilization.
- Hands-free™ door allows both hands free while holding samples.
