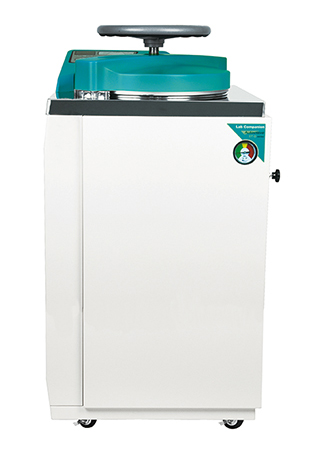

Lab Companion ST-105G Vertical Autoclave (105L / 3.7 cu ft)

Item#: AAHL1045K

Suitable for temperature characteristic tests such as heat treatment and drying

  • Convenient use with various operation mode for each usage.
  • Perfect sterilization with the multiplicative safety system.
  • 230V, 50/60Hz

$10,566.00 $10,037.70

Add to wishlist
REQUEST PROPOSAL
Supplier:
  • Control: Microprocessor PID control
  • Chamber volume (L / cu ft): 105 / 3.7
  • Temperature-
    • Sterilization temp. (℃ / ℉): 110 to 123 / 230 to 253.4
    • Melting temp. (℃ / ℉): 60 to 100 / 140 to 212
  • Pressure-
    • Sterilization at 121℃ (kg/cm2): 1.1 to 1.2
    • Gauge range in analog (Mpa): - 0.1 to 0.6
    • Permissible altitude (m): Up to 800
  • Safety:
    • Over temperature protector / Pressure safety valve / Over current protector
    • Warning alert (over temp. / low temp. / low heat / sterilization fail /  low water level)
  • Timer: 0 to 999 min.
  • Dimensions-
    • Exterior (W×D×H): 624x672x1233 mm / 24.57"x26.46"x48.54"
    • Exterior w/ Exhaust tank (W×D×H): 722x672x1233 mm/ 28.42"x26.46"x48.54"
    • Interior (W×H): 400x908 mm / 15.75" x 35.75"
    • Door max. opening (W×D×H): 1012x672x1245 mm/ 39.84"x26.46"x49.01"
    • Basket (ØxH) (mm / inch): 380x405 / 14.96x15.94
    • Net weight (Kg / lbs): 110 / 242.51
  • Electrical requirements (230V, 50 / 60Hz): 21.3A

Performance

  • Microprocessor controller and temperature calibration function allows for high precision temperature control.
    - Sterilization temperature at 110 to 123°C
    - Melting* temperature at 60 to 100°C
    * Liquefaction of coagulated agar media.
  • Automatic sterilization system for unattended operation.
    - Heating > Check safe > Sterilization > Sterilization safe > Exhausting > End
  • Convenient operation modes for various uses.
    - Standard modes and program modes are listed in detail as below tables.
  • Temperature calibration function.
Standard modes Temp.(°C) Time(min.)
Decontamination 121 35
Solids sterilization 121 20
Liquids sterilization 121 15
Melting 100 30
Program modes Temp.(°C) Time(min.)
Sterilization 1 110 to 123 1 to 999
Sterilization 2 110 to 123 1 to 999
Liquid sterilization 110 to 123 1 to 999
Melting 60 to 100 1 to 999



Convenience

  • Conveniently monitored by an independent control display, sterilization process display, and pressure gauge.
    - VFD for visualization of temp, pressure(optional), timer, warning alert checks.
    - LED lamps for sterilization process check.
    - Easy pressure check with the standard gauge attached to the front.
  • Vertical type autoclaves which allow for top loading are suitable for high volume sterilization.
    - Baskets are stackable two high or even more levels, which secure inside the chamber space requirements.
  • Low-maintenance
    - The chamber is constructed of stainless steel which is superiorly resistant to corrosion.
    - Easy to replace silicone gasket.
  • Convenient documentation with the optional data recorder.
    - Dot type recorder(6 point) allows for precise documentation.

Safety

  • Mechanical safety devices
    - Over current protection.
    - Over temperature protection by automatic power cutoff.
    - Over pressure protection by automatic and manual safety valve.
  • Safety warning systems
    - Over temperature warning.
    - Low temperature warning.
    - Low water level warning.
    - Low heat warning if the temperature does not reach the sterilization or melting temperature.
    - Sterilization fail warning if the operation is unexpectedly stopped during sterilization process.
  • Slide opening door with plastic cover of low thermal conductivity prevents burns from the contact.

Request a Proposal
