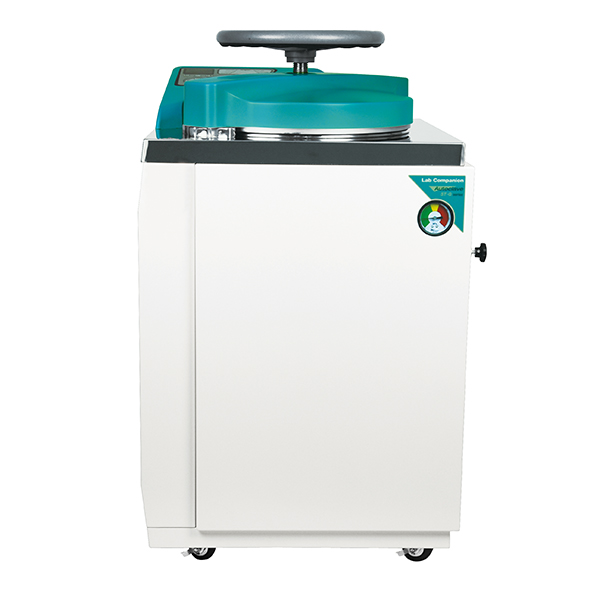

Lab Companion ST-50G Vertical Autoclave (50L / 1.76 cu ft)

Item#: AAHL1015K

Suitable for temperature characteristic tests such as heat treatment and drying

  • Convenient use with various operation mode for each usage.
  • Perfect sterilization with the multiplicative safety system.
  • 230V, 50/60Hz

$8,257.00 $7,844.15

Add to wishlist
REQUEST PROPOSAL
Supplier:
  • Temperature
    • Sterilization (℃ / ℉): 110 to 123 / 230 to 253.4
    • Melting (℃ / ℉): 60 to 100 / 140 to 212
  • Pressure
    • Sterilization at 121℃ (kg / cm2): 1.1 to 1.2
    • Gauge range in analog (Mpa): -0.1 to 0.6
  • Dimensions
    • Volume (L / cu ft): 50 / 1.76
    • Internal (Ø x H, mm / inch): 400 x 458 / 15.75 x 18.03
    • External (W x D x H, mm / inch): 624 x 672 x 870 / 24.57 x 26.46 x 34.25
    • External with Exhaust Tank (W x D x H, mm / inch): 722 x 672 x 870 / 28.42 x 26.46 x 34.25
    • Door Max. Opening (W x D x H, mm / inch): 1012 x 672 x 882 / 39.84 x 26.46 x 32.72
    • Basket (Ø x H, mm / inch): 380 x 180
    • Net weight (kg / lbs): 94.5 / 208.34
    • Electrical requirements (230V, 50/60Hz (A)): 14.3

Proven Control Capability

  • Verified according to KS P 6102, providing a more reliable sterilization environment.

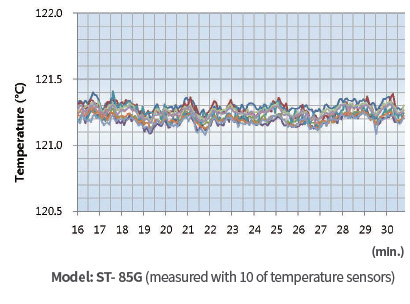

  • Verified stable temperature control performance by measuring the inside with 10 of temperature sensor.

Structural Functional Features

  • Easy to open and close with circular handle.
  • Including pressure gauge for internal pressure verification.
  • Exhaust tank provided as standard.
  • Including drain bucket for use cleanly.
  • Upper part is made of stainless steel and is easy to maintain.

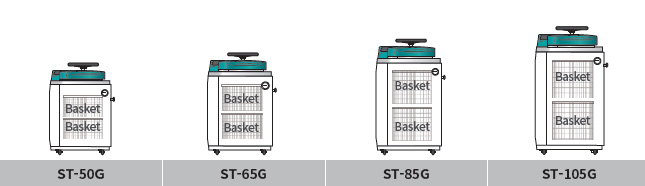

  • Vertical, top loading system makes it easy to sterilize large volume samples.
  • Casters for easy mobility during installation or relocation.

Use Convenience Features

  • Easy operation environment allowing the whole sterilization process to be started with just one operation.
  • Three operation modes provided according to usage.
  • Precise temperature control with PID Feedback control and Auto Tuning.
  • Automatic exhaust after the sterilization process.

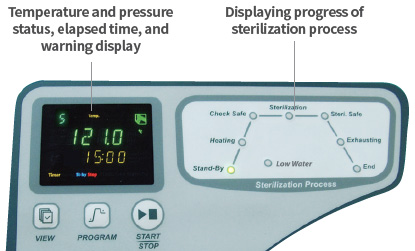

  • LED display lamp for clear VFD and sterilization step to check operation status and sterilization progress conveniently.
  • Including sterilization elapsed time display.
  • Additional temperature sensor and recorder for recording sterilization procedure. (option)
  • Pressure for each step can be checked with pressure sensor. (option)
  • Including manual valve for releasing internal pressure.

Outstanding Safety

  • Preventing users from get burnt by using safety door cover made of plastic with low thermal conductivity.
  • Automatic operation of safety valve when overpressure occurs.
  • Over temperature protection. (over temperature limiter)
  • Low level of solution alarm. (low level limiter)
  • Overcurrent and short circuit protection.
