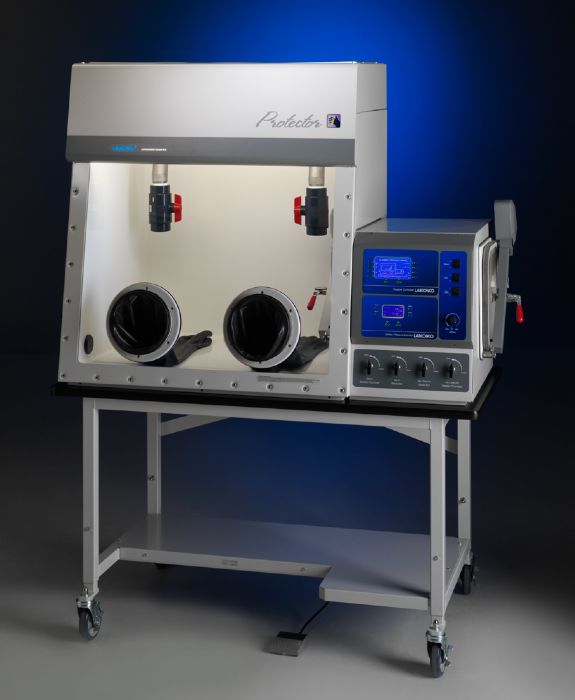

Labconco Protector Double Stainless Steel Combination Glove Box

Item#: 5080162

Protector Combination Glove Boxes provide inlet and outlet HEPA or ULPA filtration and a leak-tight physical barrier to protect the operator from exposure to potentially hazardous materials and perform work with contamination-sensitive materials under vacuum or in an inert environment.? Protector Combination Glove Boxes feature two internal valves to convert the glove box from a flow-through filtered box to an inert atmosphere glove box.

REQUEST PROPOSAL
Supplier:
  • Estimated Shipping Weight:?1,300.0 lbs
  • Estimated Shipping Weight metric:?590.0 kg
  • Dimensions:?108.9" w x 34.4" d x 45.7" h
  • Dimensions metric:?276.6 x 87.4 x 116.1 cm
  • Electrical:?100-115 volts, 50/60 Hz, 10 amps
  • Region:?U.S. and Canada
  • Built-In Options:?Pressure control module and foot pedal
  • Conformance:?ETL, UL 3101-1/61010-1, CAN/CSA C22.2 No. 1010.1
  • Filter Type:?ULPA
  • Interior Working Width:?81.8"
  • Liner Material:?Stainless Steel
  • Number of Glove Ports:?Four
  • Power Cord & Plug:?North America, 100-115 Volts
  • Primary Application:?Hazardous materials, Atmosphere-sensitive materials
  • Product Subcategory:?Combination Glove Box
  • Required Accessories:?Inert Gas, Supporting Base, Vacuum Source
  • Factory leak-tested with a mass spectrometer while pressurized with helium at 5 inches of water gauge. No detectable leaks greater than 1 x 10-6 ml/sec.
  • LCD display provides real time monitoring of volume dilution rates in cubic feet per minute (CFM), air changes/minute (ACM), main chamber pressure (inches of water), and transfer chamber in inches of mercury and mBar.
  • Large viewing area, 36.0? w x 27.6? high (91 x 70 cm) provides maximum visibility. Viewing window is 3/8? thick, laminated safety glass. Double glove boxes have two viewing areas.
  • Space-saving inner and outer transfer chamber doors that pivot upward, are counterbalanced and equipped with quick-latches.
  • Interior right-hand side wall-mounted electrical receptacle with 10 amp maximum (100/115 volt models) or 10 amp maximum (230 volt models) circuit load. North America models are duplexes. Double gloves boxes have an additional centrally-mounted interior duplex receptacle.
  • Two internal valves to convert the glove box from a flow-through filtered box to an inert atmosphere glove box.
  • Pair of neoprene gloves, 0.015? thick, 30? long, size 9 ?.
  • Switches for light and electrical duplex.
  • Two 8? ID, epoxy-coated aluminum double-grooved glove ports mounted 17? apart, with neoprene gaskets.
  • Two 25-watt fluorescent lights.
  • Dry-powder epoxy-coated, 18 and 20 gauge steel exterior panels.

Filtered Glove Box Features

  • Particulate containment <20 nanograms per cubic meter as confirmed by SafeBridge Consultants, incorporated.
  • Fast ?clean up time.? 0.05 ppm average tracer gas levels or less detected during perimeter scan testing (surpasses ASHRAE 110 satndards) after 5 minute dilution.
  • Airborne particulate cleanliness (measured under positive and negative pressures per ISO 14544-1 test method) exceeds ISO Class 5 conditions (equivalent to Class 100) and achieves ISO Class 4 conditions.
  • Inlet and outlet particulate (HEPA or ULPA) filters to prevent contaminants from entering or leaving the glove box chamber.
  • Test port for challenging HEPA or ULPA filter integrity.
  • True Bag-In/Bag-Out Filter Disposal System for safe filter removal and replacement.
  • Built-in blower with speed control capable of airflow from 15 CFM to 85 CFM depending on voltage and frequency.

Controlled Atmosphere Glove Box Features

  • Exceed Class I atmosphere containment conditions for oxygen permeation <1.67 ppm/min per ISO 10648-2 test method.
  • Oxygen permeation <0.3 ppm/min (fiberglass-lined models) and <0.15 ppm/min (stainless steel-lined models) per ISO 10648-2.
  • Four manual valves ? two on the main chamber and two on the transfer chamber ? for evacuating, filling and added control. With 3/8? compression fittings.
  • Automatic control of the main chamber pressure (-5 to +5 inches of water gauge), main chamber evacuation and filling cycles (up to 499 cycles), and transfer chamber evacuation and filling cycles (up to 199 cycles).
  • Regulation of vacuum/pressure between -5 and +5 inches of water gauge in the main chamber and between 0 and -29.5 inches of mercury in the transfer chamber.
  • Mutable, audible alarm that sounds when pressure/vacuum level is outside set limits.
  • Three-position foot pedal (increase gas/fill, off, evacuate/decrease gas).
  • Input/output port for optional AtmosPure? Re-Gen Gas Purifier.
  • Factory-installed, rear-mounted, low profile stainless steel pressure relief bubbler at 6 inches of water gauge.
  • Two rear-mounted inlet and outlet 3/4? OD compression fittings for easy connection to optional AtmosPure? Re-Gen Gas Purifier or other accessory drying train.

Compliance

  • ETL (North American models)
  • UL 61010-1 (North America models)
  • CAN/CSA C22.2 No. 1010.1 (North America models)
  • ?CE Conformity Marking (International models)

Options

  • Double wide models with four glove ports for two operators
  • International electrical configurations
  • Chemical resistant, one-piece molded fiberglass liner or type 304 stainless steel liner
  • Inlet and outlet 99.99% efficient HEPA (fiberglass-lined models) or 99.999% efficient ULPA (stainless steel-lined models) filters

Required Accessories

  • Adjustable Height Base Stand or Stationary Base Stand
  • Vacuum Source
  • Inert gas for filling
