- Heating Plate Diameter: 7.25" x 7.25"
- Motor Type: exterior rotor brush less motor
- Max. Stirring Qty [H2O], I: 20
- Speed Range: 100-1,500 rpm
- Adjustable Safety Cut-Out Setting [°C]: room temperature to 550
- Over Temperature Cut-Out [°C]: 580
- Dimensions: 4.4"H x 8.5"W x 14"D
- Voltage: 100-120 VAC, 60Hz
- Weight: 11 lbs.

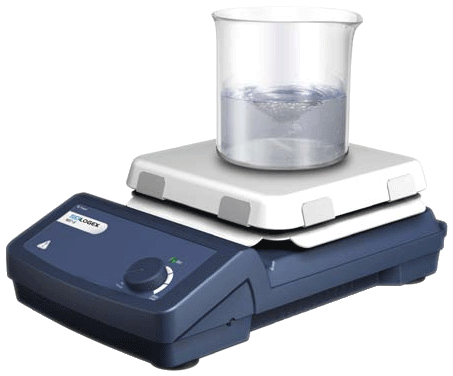

SCI7-S Analog Magnetic Stirrer with Ceramic Glass Plate
Item#: 81321100Analog hotplate stirrers from Scilogex offer electronic speed control for a constant speed even during changes in load, as well as low heat temperature stability. Analog models are also offered which provide a stirring facility only, with no integrated hotplate. These models are a highly cost-effective and low-maintenance option for situations in which ambient temperature reactions only are performed. All Scilogex analog stirrers and hotplates are provided with a brush less motor which has the advantage of a long working life and little requirement for maintenance.
- Adjustable safety temperature cut-out: safety cut-out within the 100-580°C temperature range is adjustable.
- Accurate temperature and speed control: the microprocessor control technology effectively monitors the temperature and speed precision.
- Heat warning: the LCD displays "HOT" when the plate temperature exceeds 50°C, when the unit is switched off; the hotplate turns off when the plate temperature goes below 50°C
- LCD real-time display: set temperature and actual temperature can be displayed. Real-time monitoring temperature and speed via LCD display.
- PC control via RS232 interface, can control and document all measuring values via PC. Parameters can be set to carry out safety monitoring.
