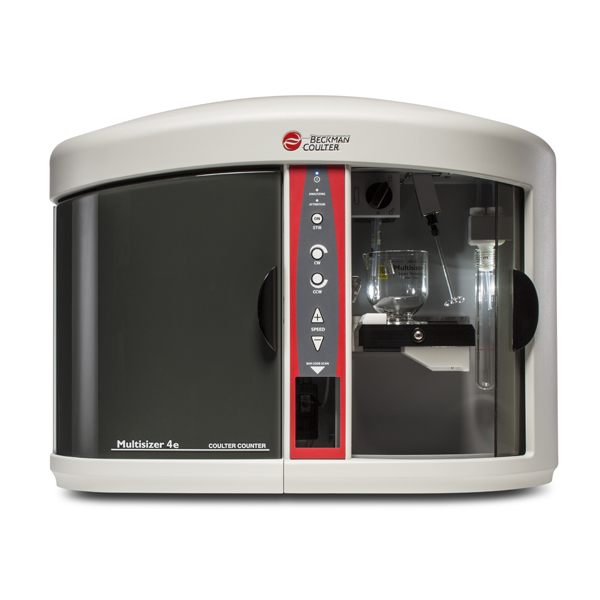

Multisizer 4e Coulter Cell Analyzer

Item#: Multisizer-4e

The Multisizer 4e COULTER COUNTER is a highly versatile particle counting and characterization system. It uses the Coulter principle to detect particles via electrical zone sensing, regardless of the particle’s nature or optical properties. This makes it an ideal tool for detecting and counting a wide variety of particles, such as:

  • Mammalian cells
  • Bacteria
  • Yeast
  • Abrasives
  • Toner particles
  • Cell aggregates
  • Spheroids
  • Large protein aggregates
REQUEST PROPOSAL
Supplier:
  • Performance: Aperture current accuracy ± 0.4% of setting; Polarity error less than 0.5%
  • Industry Standards: 21 CFR Part 11
  • Max Capacity Volume Range: 4.00|400.00|mL
  • Particle Size Analysis Range: 0.20|1,600.00|μm in diameter
  • Sample Volume: 0.004 μm^3 to 2.145 x 10^9 fL or μm^3|
  • Fluid Compatibility: All aqueous and non-aqueous electrolyte solutions devised for use with aperture technology are suitable for use with the Multisizer 4e. Electrolytes should be compatible with glass, fluoropolymers, fluoroelastomers, and stainless steel.
  • Linearity: Linearity for 2% - 60% of aperture diameter: ± 1% for diameter, ± 3% for volume
  • Aperture Diameter Range: 10.00|µm to 2,000.00|µm apertures (nominal diameter)
  • Digital Pulse Processor: Proprietary high-speed digitization of the signal
  • Volumetric Mode: Continuously selectable from 50 µL-2,000 µL
  • Volumetric Pump Accuracy: >99.5%

Versatility

  • Aperture sizes from 10 µm - 2000 µm in diameter for current & future needs
  • Multiple aperture options & data overlay capability for analyzing complex samples over wide particle size distribution

Sample Detection

  • Analyze materials in aqueous or non-aqueous solvents
  • Ideal for biological or non-biological samples
  • Detect particles regardless of material type or optical properties

Rapid Particle Counting

  • Typical sampling rates up to 10,000 counts per second
  • Detect & count particles from 0.2 µm - 1600 µm in diameter
  • Sample volumes as small as 5 mL

Data Management

  • Digital pulse data can be stored & re-analyzed as needed
  • CFR 21 Part 11 compliant software for audit control & security
  • Variety of calibration beads & V-check validation controls
