- Exterior Dimensions (W x D x H) 25.625” x 27” x 37.75”
- Interior Dimensions (W x D x H) 20.375” x 20.625” x 24”
- Foot Print (W x D): 22” x 17.5”
- Chamber Volume: 5.65 ft3 (160 Liter)
- Shelf Dimensions (W x D): 18” x 18.75”
- Shelves Supplied (Standard) Quantity 4
- Maximum Shelf Capacity: 16
- Maximum Weight Capacity:
- 25 lbs (11.34 kg) per shelf
- 125 lbs (56.7 kg) per incubator
- Water Pan Dimensions (W x D x H) 10" x 1.5" x 12"
- Water Pan Capacity:
- 2 Liters (Maximum)
- 1.5 Liters (Recommended Fill)
- Volume 5.65 ft3 (160 L)
- Net Weight (Including Water and Shelving): 403 lbs
- Electrical Requirements: 115V, 50/60Hz
- Quality Assurance: UL, UL-C, CE

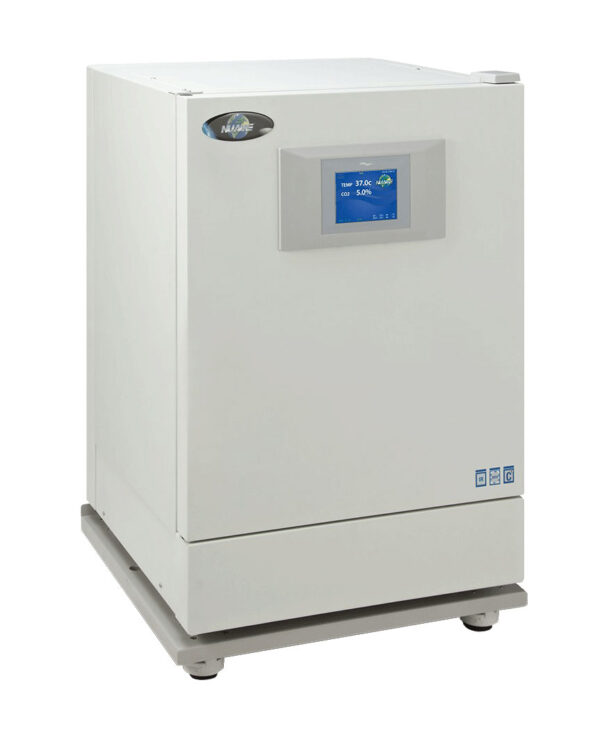

NuAire In-VitroCell ES NU-8600 Water Jacketed CO2 Incubator | 5.65 cu. ft. (160L)
Item#: NU-8600 REQUEST PROPOSAL- 16-Gauge Type 304 Polished Stainless Steel Growth Chamber
- 16-Gauge Type 304 Polished Stainless Steel Shelving (Qty 4)
- NuTouch Electronic Control System (ECS)
- Closed Loop HEPA Filtration System
- Infrared (IR) Sensor
- O2 Monitor and Control System
- R5 Insulation System
- Independent Door Heater
- Right Hinge Swing Field Reversible Exterior Door
- Right Hinge Swing Field Reversible Inner Glass Door
- Removable/Autoclavable Inner Door Gasket
- Water Fill Port
- Drain Valve
- Quantity Four (4) Shelves
- Quantity Four (4) Wall Brackets
- Quantity Eight (8) Shelf Guides
- Heavy Duty Leg Levelers
- USB Port
- RJ-11 Communication Port for Remote Alarm Connection
- RJ-45 Jack - RS-485 2-way Communication
- Output: Control system levels and alarms/events
- Input: Commands from a Computer to view and update operating parameters
- RJ-45 Jack - 4-20 mA Analog Output for monitoring all active control system levels
- Utility Access Port
- Stainless Steel Water Pan
- 8-foot (2.5m) electrical power cord
- Field Stackable with Appropriate NuAire Incubator Models
Temperature Control:
- Control Range: 5°C above ambient (to a 30°C max ambient) to 55°C
- Set-Point Range: 5°C to 55°C (37.0 Default)
- Uniformity: ±0.2°C @ 37°C
- Accuracy: ± 0.1°C
- Recovery: 0.12°C/min. on Average
- Display Resolution: 0.1°C
- Door and Perimeter Heater Control Logic: Proportional base duty cycle based on Temperature set point and 0-100% manually adjustable to adapt to ambient conditions.
- Temperature Sensor Type: Precision Integrated Circuit
CO2 Control Standard:
- Range: 0.1 to 20% (default 5%). (0.0 set point idles system)
- Accuracy: ±0.1%
- CO2 Recovery: Up to 5% ±0.2% / -0.5 in 5 minutes Average
- CO2 Display Resolution: 0.1%
- CO2 Control Logic: Fixed Algorithm/Manual, Environmental Adaptable
- CO2 Sensor Type: Infrared single source dual wave length
