- Shipping Inches (mm): 31 (787) W x 49 (1245) H x 33 (838) D
- Access Port Location: Right Side
- Air Cleanliness (ISO 14644): ISO-Class-5
- Chamber Air Circulation Method: Air Pump
- Chamber Air Filter: 99.97% Efficiency @ ≥ 0.3 Micron Capsule Filter Located in Sensor Bay
- Chamber Heater(s) Location: Bottom of Chamber
- Chamber Jacket Technology: Water Jacket, 20 Gallon (75.7 Liter)
- CO2 Accuracy: ± 0.1%
- CO2 Control Logic: Fixed Algorithm/Manual, Environmental Adaptable
- CO2 Display Resolution: 0.1%
- CO2 Range: 0.1 to 20%, 5% Default Set Point
- CO2 Recovery: Up to 5% ± 0.2% / -0.5 in 5 minutes Average
- CO2 Sensor Type: Infrared (NDIR)
- Control System: NuTouch
- Data Output Features: RS-485, USB, 4-20mA
- Door and Perimeter Heater Control Logic: Base Duty Cycle set to chamber temperature Set-Point, Proportional 0-100% [manually adjustable
- Electrical Configuration: 115V50Hz, 230V5060Hz
- Exterior Depth: 27” (685mm)
- Exterior Door Seal: Magnetic Outer Door Gasket
- Exterior Height Inches (mm): 37.75 (958)
- Exterior Material: 16 Gauge Steel with Textured Polyurethane Finish
- Exterior Width Inches (mm): 25.625 (649)
- Footprint Depth inches (mm): 17.5 (445)
- Footprint Width inches (mm): 22 (557)
- In-line Gas Filters: 99.97% Efficiency @ ≥ 0.3 Micron Disk Filters for Gas & Air Supplies, Disk Filter for CO2 Sensor
- Segmented Doors: Optional Set of 4 Inner Doors
- Inner Doors: One Standard, Sectional optional
- Insulation: Insulation with R5.0 Rating
- Interior Depth Inches (mm): 20.625 (524)
- Interior Door Seal: Silicone Rubber Gasket
- Interior Height Inches (mm): 24 (611)
- Interior Material: Polished Type 304L 16 Gauge Stainless Steel
- Interior Volume Cubic Feet (Liters): 5.65 (160)
- Interior Width Inches (mm): 20.375 (518)
- Net Weight lbs (kg): 403 (183) includes full water jacket and shelves
- Power Cord Length Foot (Meter): 8 (2.5)
- Remote Alarm Terminals: Standard
- RH Control Method: Water Pan
- RH Water Pan Capacity: 2L (Recommended Fill 1.5L)
- Sample Port Location: Inner Glass Door
- Shelf Capacity lbs (kg): 25 lbs per Shelf / 125 lbs per Incubator
- Shelf Depth Inches (mm): 18 3/4 (476)
- Shelf Material: Stainless Steel or Copper Alloy
- Shelf Width Inches (mm): 18 (457)
- Shelves: 4 Shelves Supplied, 16 Shelves Maximum Capacity
- Shipping Weight lbs (kg): 370 (168)
- Decontamination Cycle: Not Available
- Temperature Accuracy °C: ± 0.1%
- Temperature Control: Water Jacket
- Temperature Control Range: 5°C above ambient (to a 30°C max ambient) to 55°C
- Temperature Display Resolution : 0.1°C
- Temperature Recovery: 12°C/min. on Average
- Temperature Sensor Type: Precision Integrated Circuit
- Temperature Set-Point Range: 5°C to 55°C (37.0°C Default)
- Temperature Uniformity °C: ± 0.20°C @ 37°C
- Water Pan Depth Inches (mm): 1.5 (38)
- Water Pan Length Inches (mm): 12 (305)
- Water Pan Width Inches (mm): 10 (254)

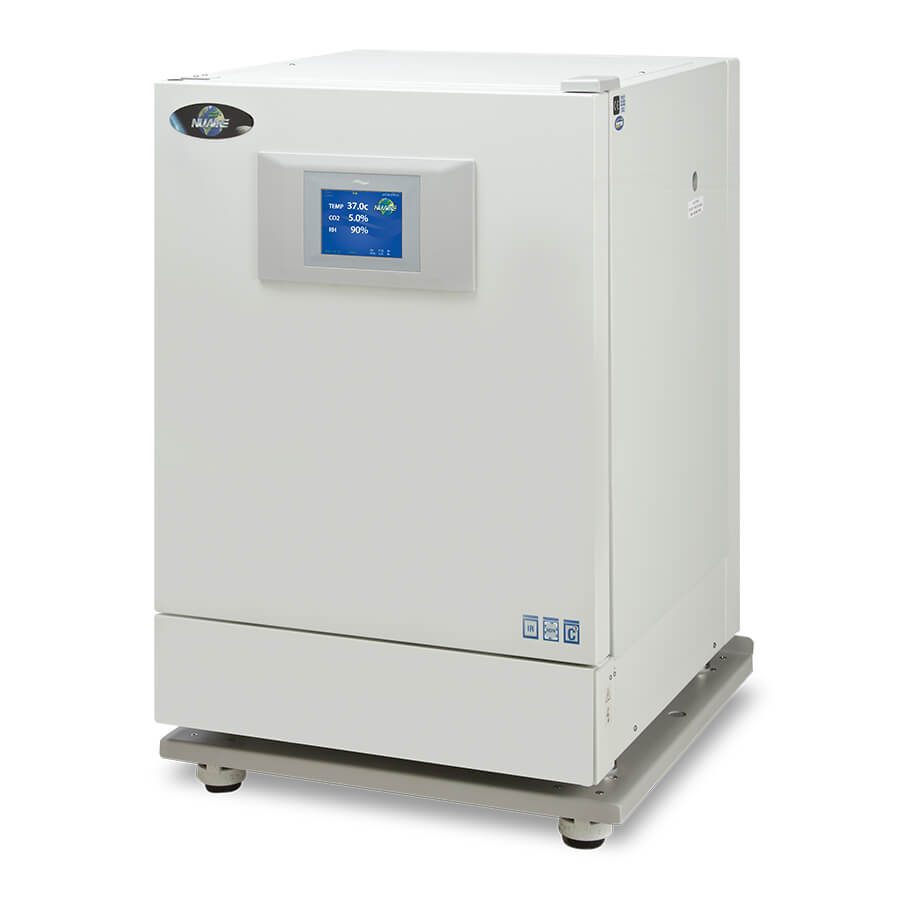

NuAire In-VitroCell ES NU-8625 5.65 cu. ft. (160L) Water Jacketed CO2 Incubator
Item#: NU-8625The In-VitroCell NU-8625 is a water jacket co2 incubator featuring a humidity sensor that monitors RH levels within the growth chamber. Model NU-8625 features a 160-liter (5.65 ft3) stainless steel growth chamber with coved interior corners to improve surface decon cleanability. Standard with four shelves, users can select stainless steel, copper alloy, or heavy-duty stainless steel shelving holding 125 lbs (57 kg). The In-VitroCell NU-8625 is the perfect solution for cell lines prone to cell desiccation with temperature accurate within 0.1% and a humidity monitor to observe chamber conditions.
- NuTouch Electronic Control System
- 100% Stainless Steel Coved Interior Chamber
- Dual Temperature Sensor Probes
- Infrared (IR) CO2 Sensor
- O2 Control System (NU-8631)
- Four (4) Stainless Steel Shelves
- Eight (8) Stainless Steel Shelf Guides
- Four (4) Wall Brackets
- Right Hinged Door Swing
- Remote Alarm Output Contacts
- 4 to 20 mA Analog Output
- RS-485 Communication
- USB Port
- CO2 Sample Port
- Adjustable Leg Levelers
- Access Port and Plug with Breather Holes
- One (1) Water Pan
- One (1) Electrical Cord
- Warranty: 3 Years Parts & Labor (5 Years IR Sensor Parts Only)
Electrical Requirements
- Startup Power: 475 watts
- Running Power: 250 watts
- Heat Rejected: 14 BTU / min.
Utility Connections
- Gas Connections: 0.25 in.
(6.3 mm) Tubing Connections - Gas Input Pressure: 20 PSIG
(1.4 BAR) Input Pressures
Maximum. Two-Stage Gas
Regulators Required.
