- Cabinet Style: Bench Top w/ Optional Base Stand
- Nominal Widths: 3, 4, 5, 6 ft [0.9, 1.2, 1.5, 1.8 m]
- Workspace Dimensions (W x D x H):
- 3ft Model: 34" x 25.75" x 28.5"
- 4ft Model: 53" x 25.75" x 28.5"
- 5ft Model: 65" x 25.75" x 28.5"
- 6ft Model: 77" x 25.75" x 28.5"
- Exterior Dimensions (W x D x H):
- 3ft Model: 42" x 32" x 61"
- 4ft Model: 54" x 32" x 61"
- 5ft Model: 66" x 32" x 61"
- 6ft Model: 78" x 32" x 61"
- Net Shipping Weight: 410 - 650 lbs
- Certifications:
- NSF / ANSI 49, EN12469
- UL listed, CE
- Access Opening: 8, 10, 12 in [203, 254, 305 mm]
- Electrical Requirements: 115 VAC / 60 Hz
- Filter Load Capacity: 300%
- Air Barrier:
- 105 fpm [0.53 m/s] Dynamic Air Barrier
- 60 fpm [0.30 m/s] True Laminar Down Flow
- ISO Class 5 Air Protection
- Supply Filter Options: 3 in [76 mm] HEPA 99.99% Efficient @ 0.3 microns
- Exhaust Filter Options: 11.5 in [292 mm] HEPA 99.99% Efficient @ 0.3 microns

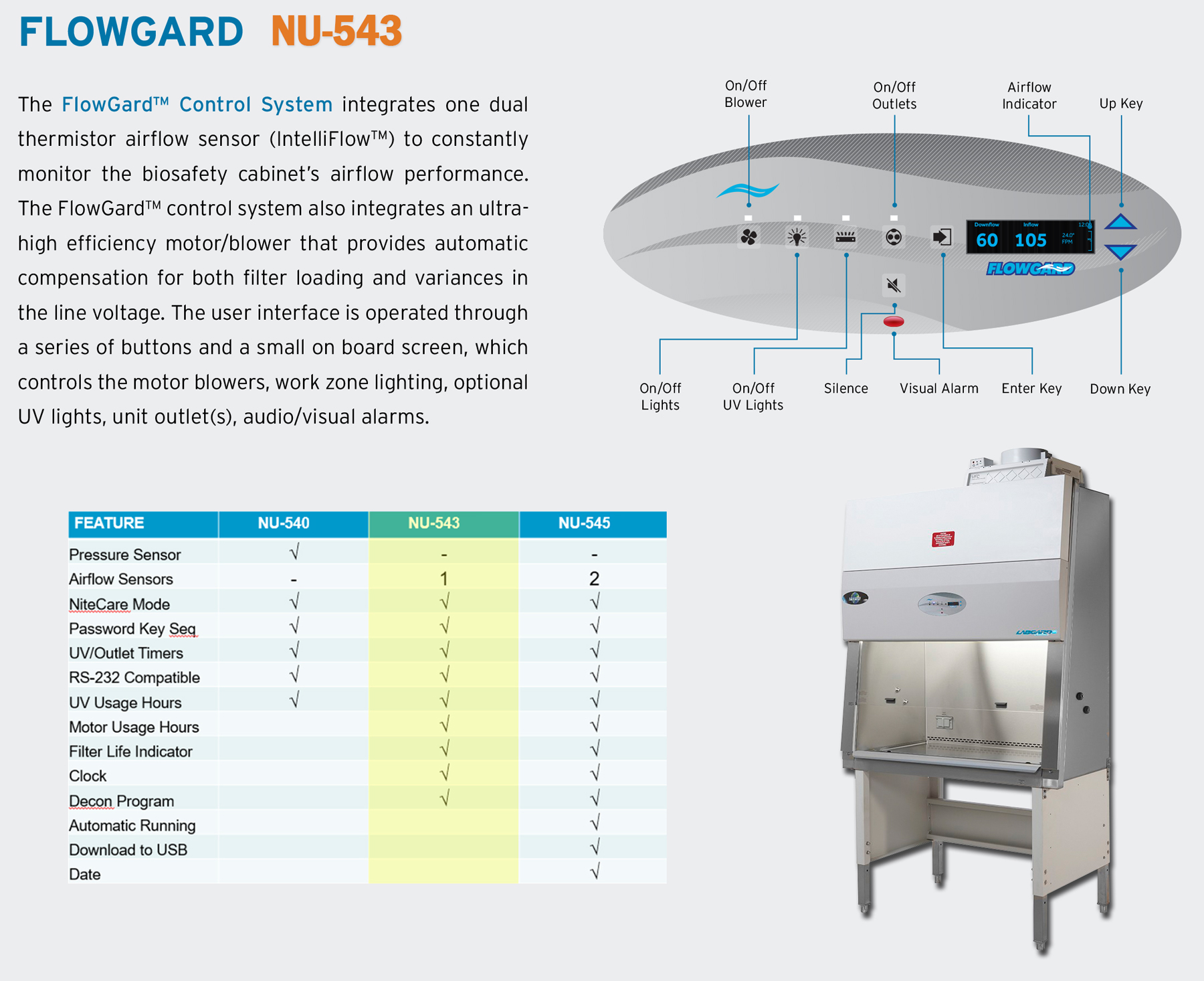

- Control System: FlowGard™
- Pressure / Airflow Sensor: IntelliFlow™ Airflow Sensor
- Lighting: LED
- Nitecare™ Compatible: Yes
- Password Protection: Yes
- Auto-Decontamination: Decon101™
- Customizable Blower Schedule: No
- USB Data Download Port: No
- Noise Level: Up to 62 dba
- Construction Options:
- Easy-to-Clean Prop-Up Work Tray
- 2 GFCI Duplex Outlets (Back Wall or Front Panel)
- 3 Service Couplings and 1 Service Valve (Right/Left Sidewalls or Front Panel)
- Single Cord Pass-Through Port (Right Sidewall; NSF Approved)
- Removable Stainless Steel Coved Work Tray
- Coved Interior Corners
- Frameless Easy-to-Slide Viewing Window
- Monolithic 16/18 gauge Stainless Steel Welded Pressure Tight Construction
- Recessed & Removable Front Intake Grill
- Stainless Steel Spill Trough w/ Drain Valve
- Attenumont™ Vibration Control Support System
- Permanent Positive Pressure Plenum w/ Quick Release Supply Filter Removal
NuAire LabGard ES NU-543 Class II, Type A2 Biosafety Cabinet
Item#: NU-543The NuAire NU-543 Class II, Type A2 BioSafety Cabinet features a dual thermistor airflow sensor and alphanumeric display for laboratories requiring a clear measurement of their cabinet’s performance and a choice of three NSF listed work access openings for procedures needing ergonomic access to the work zone. The cabinet can optionally be made with a smooth interior for procedures such as pharmacy compounding and always includes a prop up work tray to ease regular cleaning under the work surface. Double exhaust filters can be fitted to meet the requirements of an application or national guidelines. A truly global product, models are available that meet NSF/ANSI 49 and EN 12469, feature multilingual displays, and can ship from multiple locations around the world.
- 10 degree slope window
- 10” window access opening (optional 8” or 12” access opening)
- 30% exhausted / 70% recirculates airflow
- Energy Saver (ES) DC/ECM motor
- FlowGard™ Control System
- OLED Interface
- On/off functions for: blower/motor, lights, UV Light, outlets, and window alarm silence

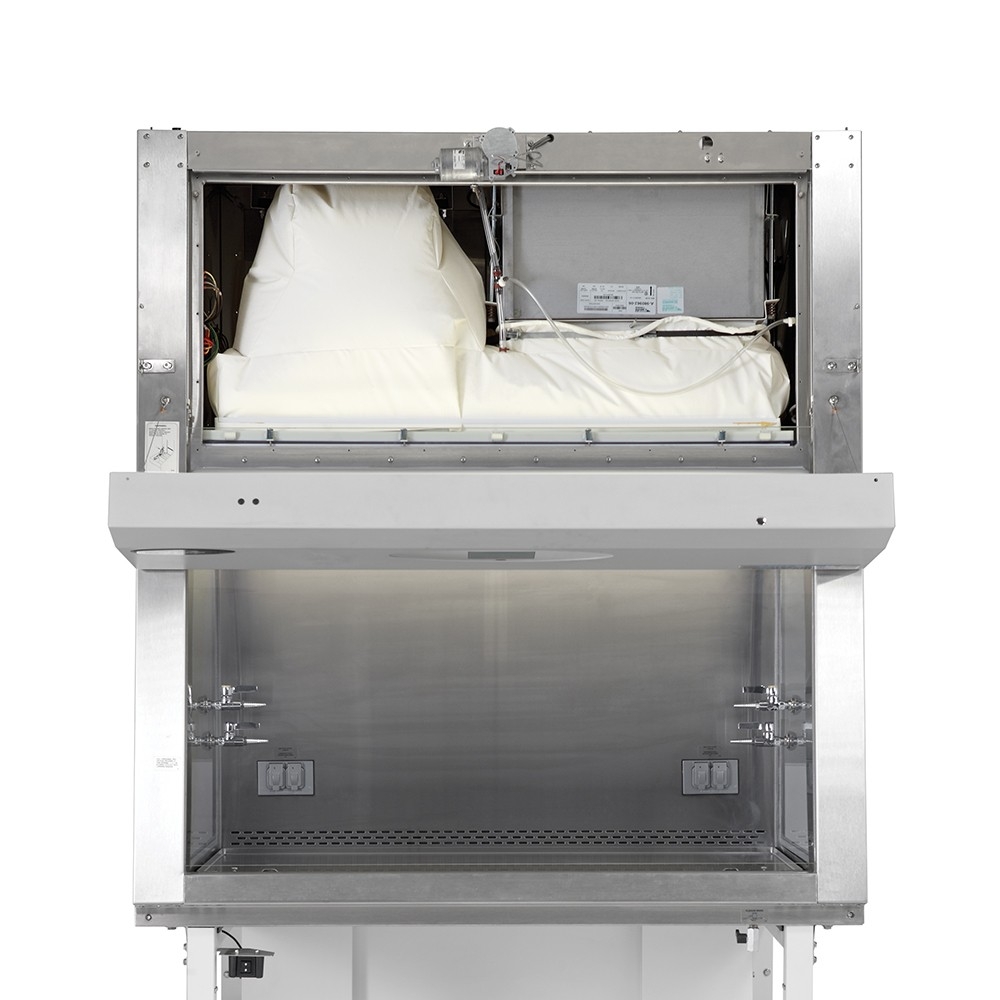

- HEPEX Zero Leak Airflow
- Monitor window position
- Password protection
- Audible and visual alarms
- Ring back functions
- Timer functions
- Plenum monitor via intelliflow™ – airflow sensor probe
- Nitecare™ night setback
- Decon Sequence Control
- ADA compliant
- NSF/ANSI 49, EN12469, and UL/c-UL Listed
- Available in 3ft, 4 ft, 5 ft, and 6 ft.
Optional Features:
- Construction Options:
- Heavy Duty Plastic Armrest w/ Stainless Steel Option
- IV Bar w/ 3 Height Locations, 6 SST Hooks
- Glass Sidewalls
- Additional Service Valves, GFCI Outlets, and/or Pass-Through Ports
- Seismic Brackets (Rear / Floor Mount)
- Heated Work Surface
- Sinks with Hot/Cold or DI Water Faucets
- Ultraviolet (UV) Light Option
- Redundant (Qty: 2) 6 or 11.5 in [152 or 292 mm] HEPA 99.99% Efficient @ 0.3 microns
- Base Stand Options:
- Telescoping Adjustable Base Stand
- Motorized Adjustable Base Stand
- Popular Accessories:
- Adjustable Ergonomic Footrest
- Silicone Cushioned Movable Elbow Rests

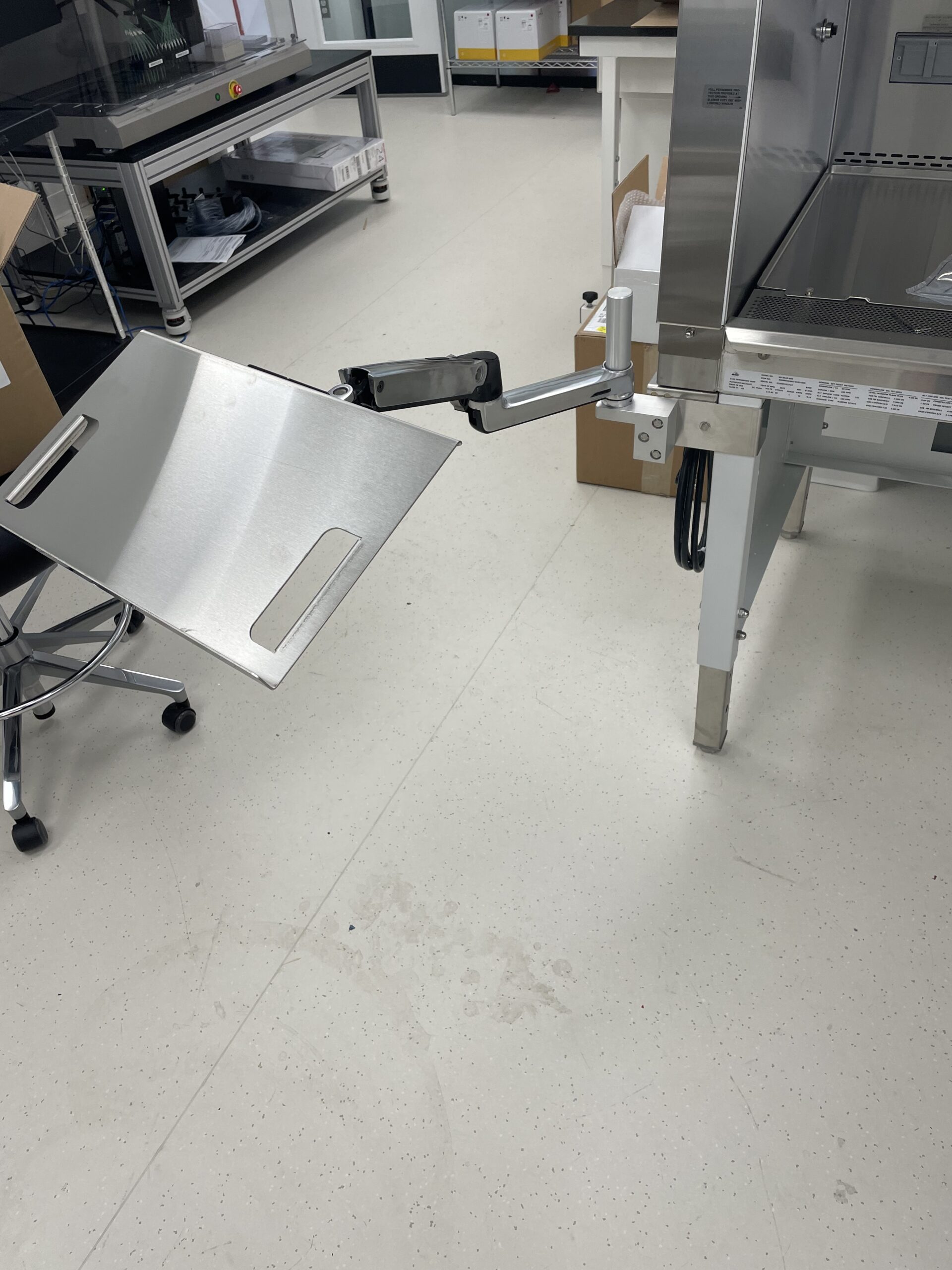

- Ergotron™ Monitor, Keyboard, and Mouse Mount
- Storage Pull-Out Trays or Shelves
NuAire NU-540 Smoke Test
Telescoping Base Stand Assembly for Your Class II Biosafety Cabinet
