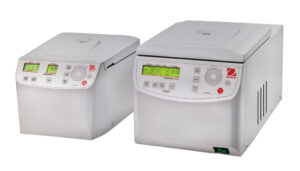

Ohaus Frontier 500 Series Micro Centrifuge FC5513R 120V | 17,157 g

Item#: 83041042

Frontier Micro centrifuges deliver high-speed operation for a range of essential lab applications, such as DNA/RNA preparation, ultrafiltration, and more. Biocontainment rotors enable research involving hazardous samples. Engineered with convenience of operation in mind, these centrifuges feature an intuitive interface, with all key parameters immediately accessible for observation and adjustment. The compact design saves valuable bench space in the lab.

$5,459.00 $4,640.15

Add to wishlist
REQUEST PROPOSAL
Supplier:
  • Speed Range: 200 rpm – 14,500 rpm
  • Maximum Relative Centrifuge Force (x g): 17,157 g
  • Maximum Capacity (rotor): 24 x 1.5 / 2.0 ml
  • Refrigeration Range: -4 °F – 104 °F (-20 °C – 40 °C)
  • Program Memories: 99
  • Rotor in Package: n/a
  • Acceleration Gear: 10
  • Deceleration Gear: 10
  • Dimensions (LxHxW): 21.9 in x 11.3 in x 11.3 in (555 mm x 286 mm x 287 mm)
  • Display: LCD with backlight
  • Lid Lock: Mechanical
  • Net weight: 73 lb (33 kg)
  • Noise Level: ≤ 56 ± 2 dB(A)
  • Power: AC Power (Included)
  • Power Comsumption: 320W
  • Pre-cool time: Not Determined
  • Rotor Compatibility: Angle 18 x 1.5 / 2. 0 ml Sealable;  Angle 24 x 1.5 / 2. 0 ml BIOSEALS;  Angle 4 x 8 place PCR Strips
  • Rotor Recognition Method: Manual
  • Running Time: 10 sec to 99 h 59 min 59 sec
  • Safety Certification: CE; FCC
  • Working Environment: 36°F – 95°F, 80%RH, non-condensing (2°C – 35°C, 80%RH, non-condensing)
  • Frontier 5513 & 5513R offer standard 24 x 1.5/2 ml microtube rotors with a biosealed option. The centrifuges can also support spin columns and hematocrit capillary tubes when used with additional rotor options.
  • Designed for ease of operation, the FC5513 & FC5513R features convenient control on a protective splash-proof interface, which allows for responsive operation—even when wearing gloves.
  • With a small footprint, Frontier 5513 & 5513R centrifuges are compact enough to save valuable space on the bench, yet large enough to accommodate the most common size 24 x 1.5/2.0 ml rotors.
  • Easy-to-Use touch-wheel interface for parameter adjustments
  • Convenient interface shows both set and actual parameters
  • One-touch toggling between RPM/RCF, Acc/Dec
  • Crisp display on a double-line LCD display with backlight
  • True splash-proof panel protects the centrifuge from accidental sample spilling
  • Maintenance-free induction motor produces maximum G-force of 17,317 x g for FC5513 and 17,157 x g for FC5513R
  • Speeds up to 13,500 rpm in less than 15 seconds with 24 x 1.5/2.0 ml rotor
  • 10 acceleration/deceleration settings
  • 99 memory sets to quickly store and recall commonly used parameters
  • FC5513R model has refrigeration capabilities from 40°C to -20°C
  • Pre-cool feature in FC5513R quickly lowers the temperature of rotor and chamber before a run
  • Works with microtube rotors with different rotor capacity - 18 x 1.5/2.0 ml or 24 x 1.5/2.0 ml
  • Compatible with up to 7 rotor option and maximum rotor capacity of 24 x 1.5/2.0 ml
  • Support spin-column and hematocrit capillary tubes through additional rotor options
  • Biosealed rotor is available for safe handling of hazardous samples
  • Rotor imbalance sensing systems stops the unit when it detects an imbalanced load
  • Lid-locking system prevents centrifuge from opening during operation (FC5513R)

Frontier 5000 Centrifuge Data Sheet

Download

Frontier FC5000 Series Centrifuge User Manual

Download

Frontier 5000 Series Rotor Guide

Download
