- Function: Heating
- Plate Construction: Ceramic
- Plate Size: 7 in x 7 in (178 mm x 178 mm)
- Temperature Range: Ambient + 5°C – 550°C
- Calibration: Temperature Calibration 3 Plate/3 Probe
- Communication: Ethernet (Available as an Accessory); USB (Available as an Accessory); RS232
- Control: Digital
- Dimensions (LxHxW): 12.94 in x 4.56 in x 8.69 in (329 mm x 116 mm x 221 mm)
- Display: High contrast brilliant LCD display
- Net Weight: 8.6 lb (3.9 kg)
- Power: 100V-120V~ 15A 50/60Hz
- Safety Certification: CE; TUV
- Temperature Probe: Pt100; Pt1000; Available as an Accessory
- Temperature Stability: +/-1% Plate, below 100°C +/-1°C and +/-0.5% Probe, below 100°C +/-0.5°C
- Timer: 1 minute – 99 hours, 59 minutes
- Working Environment: 5°C – 40°C, 80% RH, Non-condensing (41°F – 104°F, 80% RH, Non-condensing)

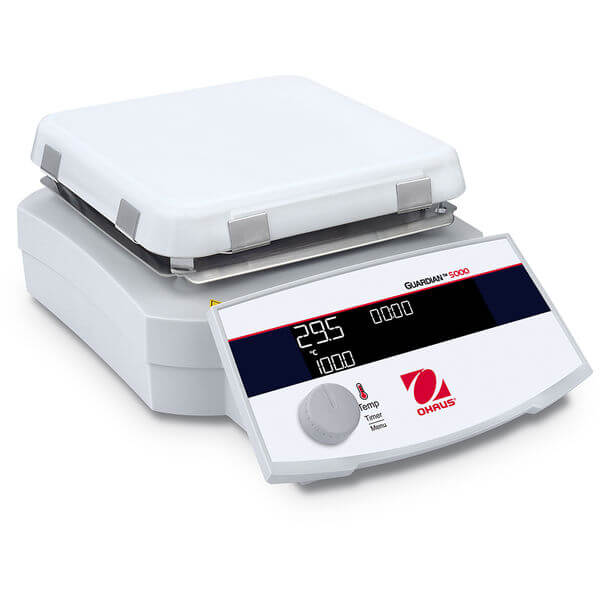

Ohaus Guardian™ 5000 Hotplate e-G52HP07C | Plate Size 7″ x 7″ (18 x 18 cm)
Item#: 30541633The Next Generation Guardian 5000TM Hotplates are engineered for safety and versatility across research, academic and industrial settings. They offer powerful heating and mixing, with premium hardware and software to support diverse users safely and reliably. Heating models reach up to 550°C and feature 3 temperature control modes for quick heating or precise heating without overshoot. Select from 5 models with 3 plate sizes.
$500.00 $425.00
- Applications: Temperature Sensitive Chemistry and Biology, Heat Fixation, Solution pH Optimization, Solution Sterilization, Endothermic Reactions, Denaturing of Organic Material, Sample and Solution Preparation, Dissolving Buffers and Reagents, Preparing Media, Boiling
- Display: Backlit LCD display with white characters, integrated heating/stirring status indicators in green and a prominent hot top indicator in yellow
- Operation: 100-120 VAC or 220-240VAC 50/60Hz power entry, rotary switch knob(s) control
- Communication: RS232 for data logging and remote control
- Construction: Robust full metal housing, ceramic square top plate or ceramic-coated aluminum round top plate, high performance SmCo magnet
- Design Features: Large dip angle front panel for easy monitoring from a distance, smooth enclosure surfaces for easy cleaning, audible alarm, IP32 protection, rapid install splashing shield (optional)
