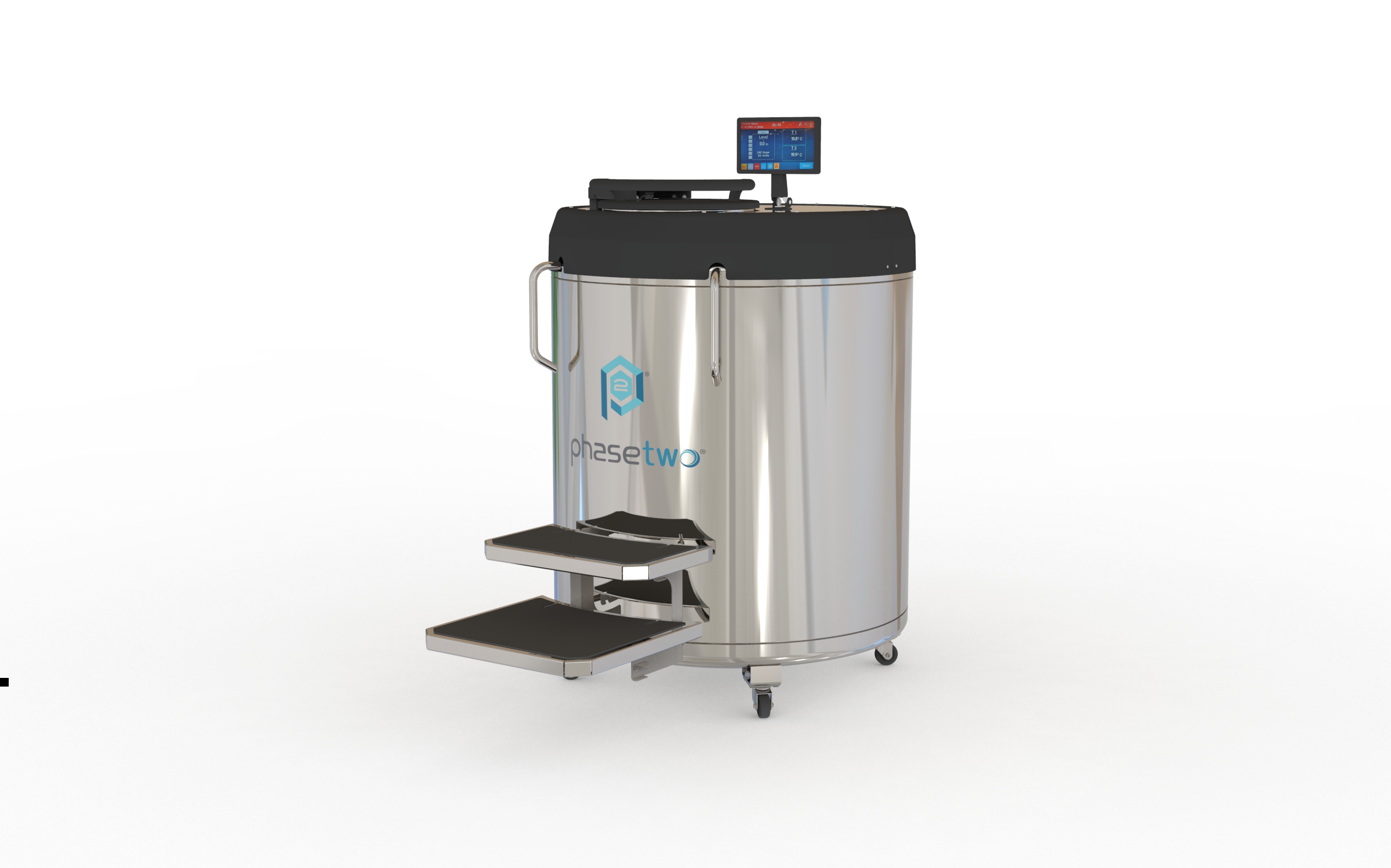

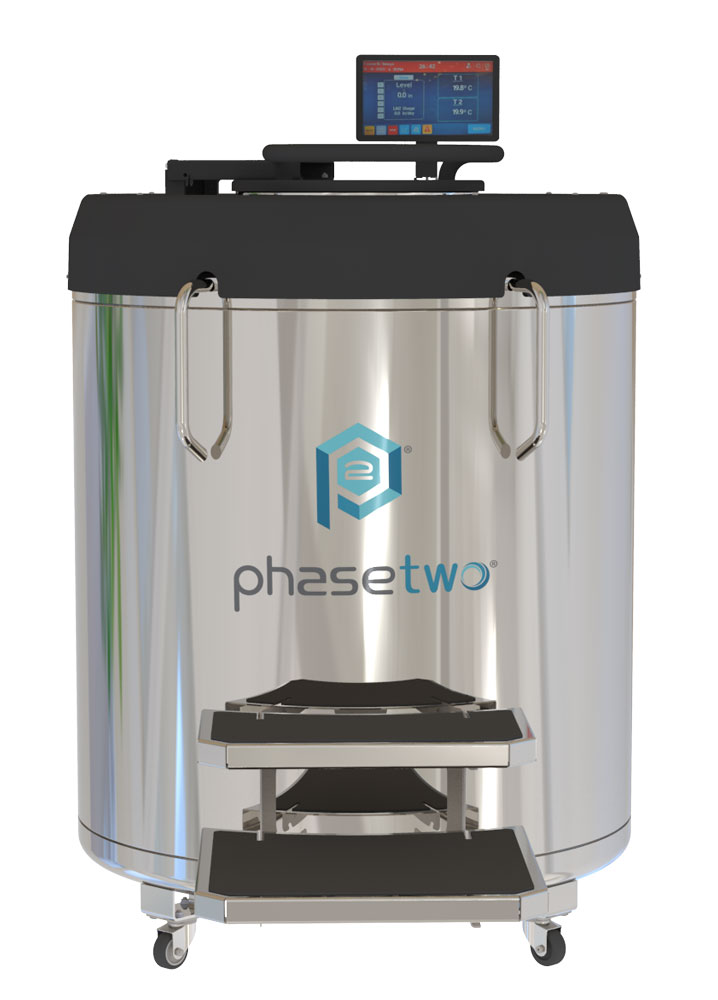

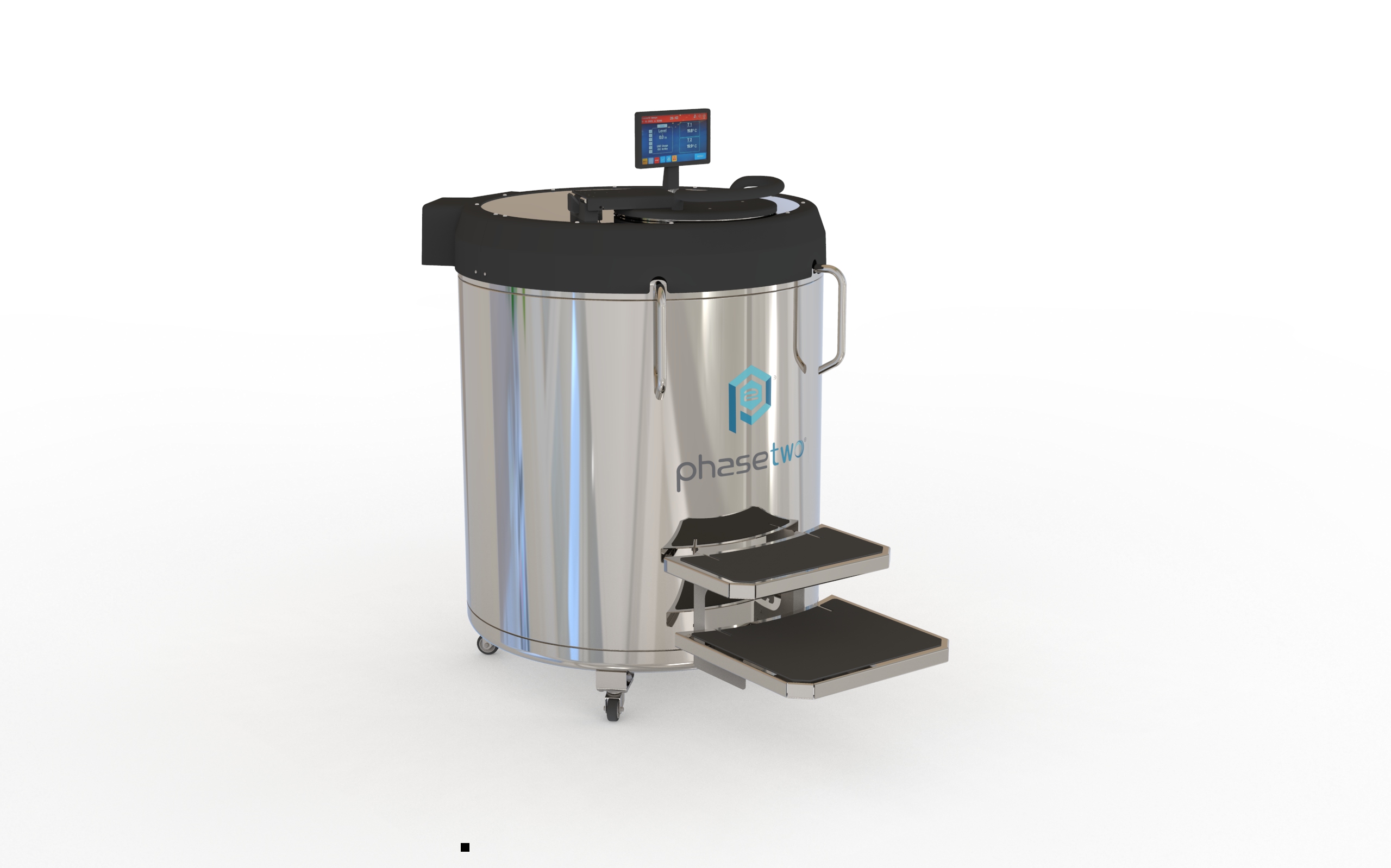

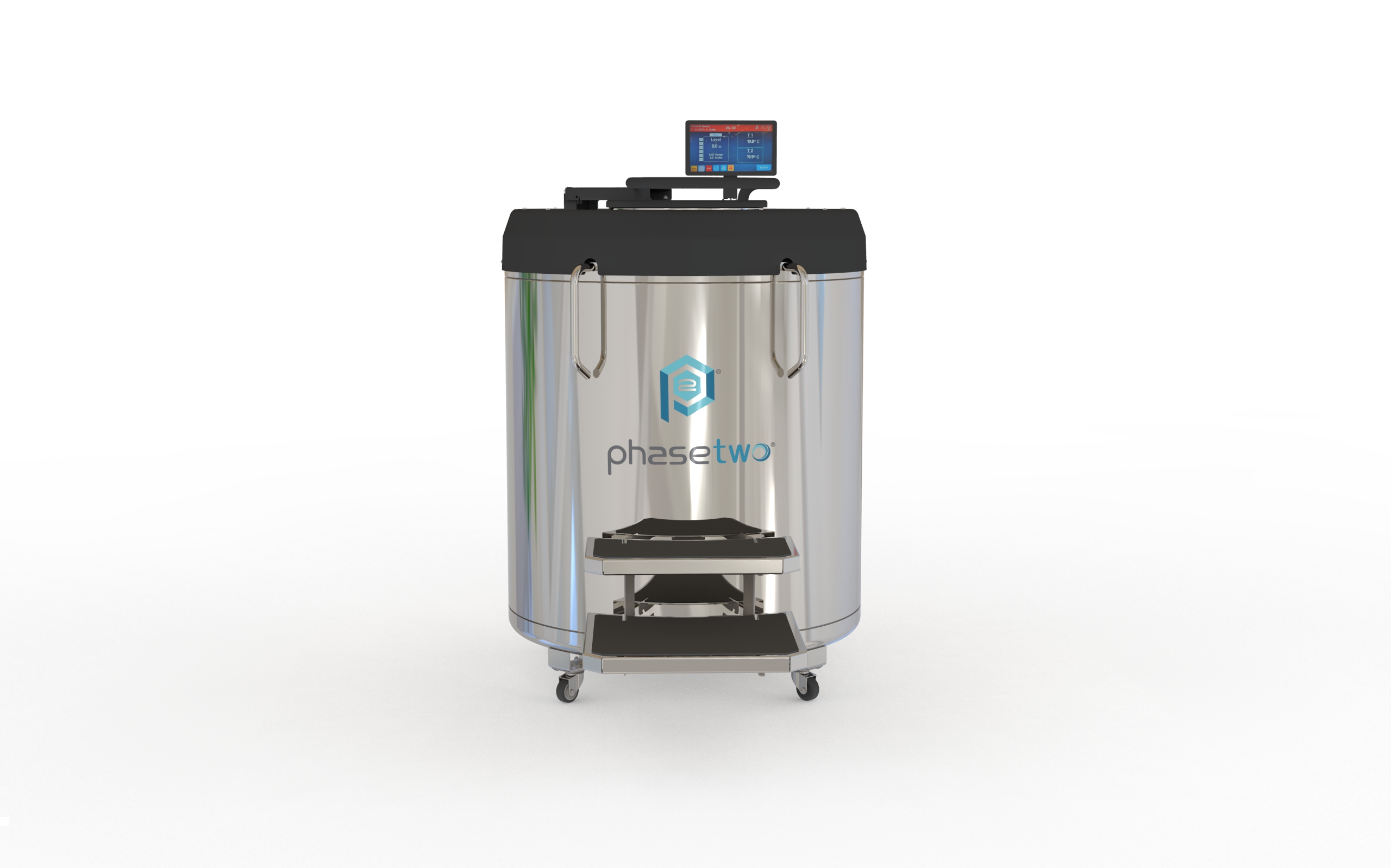

phasetwo HCHE50 High-Capacity High Efficiency Liquid Nitrogen Freezer (Capacity: 50,400 x 2.0 ml vials)

Item#: HCHE50

The phasetwo HCHE50 High-Capacity High Efficiency Liquid Nitrogen Freezer provides customers the latest cryogenic technology with the ability to store up to 50,400 2ml vials. Phasetwo LN2 freezers are equipped with an automated control with dual level sensing and touch screen display, ensuring product viability and ease of use. The cryo freezers feature premium multi-layer insulation and other materials along with the latest vacuum technology systems provides leading industry performance. Engineered and tested, phasetwo durable HCHE stainless steel freezers are suitable for today’s requirements.

REQUEST PROPOSAL
Supplier:
  • LN2 Capacity Vapor (L): 162
  • LN2 Capacity Liquid (L): 935
  • Outer Diameter (in/mm): 46.2 (1173)
  • Overall Height (in/mm): 67.2 (1707)
  • Neck Opening (in/mm): 18 (457)
  • Carousel ID (in/mm): 41.1 (1044)
  • Internal Height (in/mm): 34.9 (884)
  • Weight Empty (lbs/kg): 930 (422)
  • Weight Full (lbs/kg): 2596 (1177)
  • Evaporation Rate (L/day): 8
  • Static Holding Time (days): 20
  • Standard Racks (100/81 Cell) Levels 2mL Vial Capacity: 32/15, 48,000
  • Vertical Racks (100/81 Cell) Levels 2mL Vial Capacity: 88/6, 52,800
  • Lift Over Height (in/mm): 38.5 in/978 mm
  • Step Height (in/mm): 11 in/279 mm & 22in/559mm
Model Description Part Number
HCHE50 Cryogenic Freezer, Base Model, No Controller P2-2020963
HCHE50-Cont-GB Cryogenic Freezer, w/ DLS3 Controller & Gas Bypass P2-2026833



  • Automated control with Dual Level Sensing for product security.
  • Solenoid monitoring for overfill protection.
  • Gas bypass with unique LN2 detection system
  • Product can be stored in Vapor or LN2
  • Full height turntable with uniquely marked sections.
  • Auto defog
  • Stainless Steel Table-Top
  • Convenient access, all lids are hinged
  • Folding and lockable independent stainless-steel steps
  • Two independent temperature probes
  • Remote cloud monitoring capable

Phasetwo HCHE LN2 Freezers Spec Sheet

Download

Phasetwo Product Catalog

Download

Phasetwo HCHE LN2 Freezers Manual

Download

Phasetwo DLS3 Liquid Level Controller Manual

Download
