- Capacity: 4.3 cu. ft. / 123L
- Exterior Dimensions: 40.1”H x 27.6”W x 22.8”F-B
- Interior Dimensions: 21.9”H x 24.4”W x 15.2”F-B
- Access Port: 1, left side, inner diameter 40 mm (1.57 mm)
- Defrost System: selectable manual start or timer defrost, natural vaporization of drain water
- Temperature Range: -10°C to +60°C
- Temperature Uniformity: ±0.5°C (Temperature setting 37°C, ambient temperature 20°C, no load)
- Shelves: 3, PE coated steel wire, adjustable
- Electrical Requirements: 115V / 60 Hz / 1 phase
- Net Weight: 172 lbs.
- Warranty: 3 years parts and labor
- Temperature Range: The Panasonic MIR series offers accurate temperature control and uniformity in a wide range of temperatures, making them suitable for various testing applications.
- Microprocessor Controls: The MIR-Series incorporates an 8-bit microprocessor controller for heat and refrigeration control ±0.2°C.
- Programmable: The MIR series are completely programmable, allowing for direct numeric input with memory of operation, start dates and hours, clock mode and counter-down mode. Program input is simple and accommodates a range of diversified experimentation requirements. It is ideal for experimentation during night time, weekends, or
- that requires settings to be changed. It is also ideal for microorganism cultures and preservation.

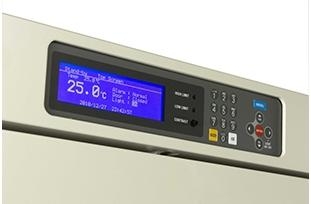

- LCD Controller: The new LCD Controller improves user interface for better programming and control. The controller features a pop-up menu that can display: Current conditions (temperature, date), alarm condition, door and light
- status, various setting for each program (e.g. 12 step, 10 program, etc.)
- Temperature Control: The microprocessor allows for precision temperature control combined with a heater P.I.D. and compressor ON-OFF system. With a feed forward function that inputs the operating conditions of the compressor beforehand, the system ensures accurate temperature control for the chamber.
- Memory Back-up Mechanism: Should the power source be interrupted due to power failure or other event, programmed data remains stored in memory semi-permanently. When the power source is restored, operation can be continued according to the predetermined program.
- Ergonomic Cabinet Design: Improved usability with modern design, reversible door, adjustable low vibration, and gentle air circulation that reduces media drying.
Product Accessories:
- Panasonic LabAlert Monitoring System
Optional Validation Services
- Validation Documents IQ/OQ
- Validation Documents IQ/OQ/PQ
- Pre-delivery Calibration
- Pre-deliver Temperature Mapping
- Factory Acceptance Test
Optional Features and Accessories:
- 1 Year Ext. Warranty
- Stacking Kit
- Glass/Window black out tinting
