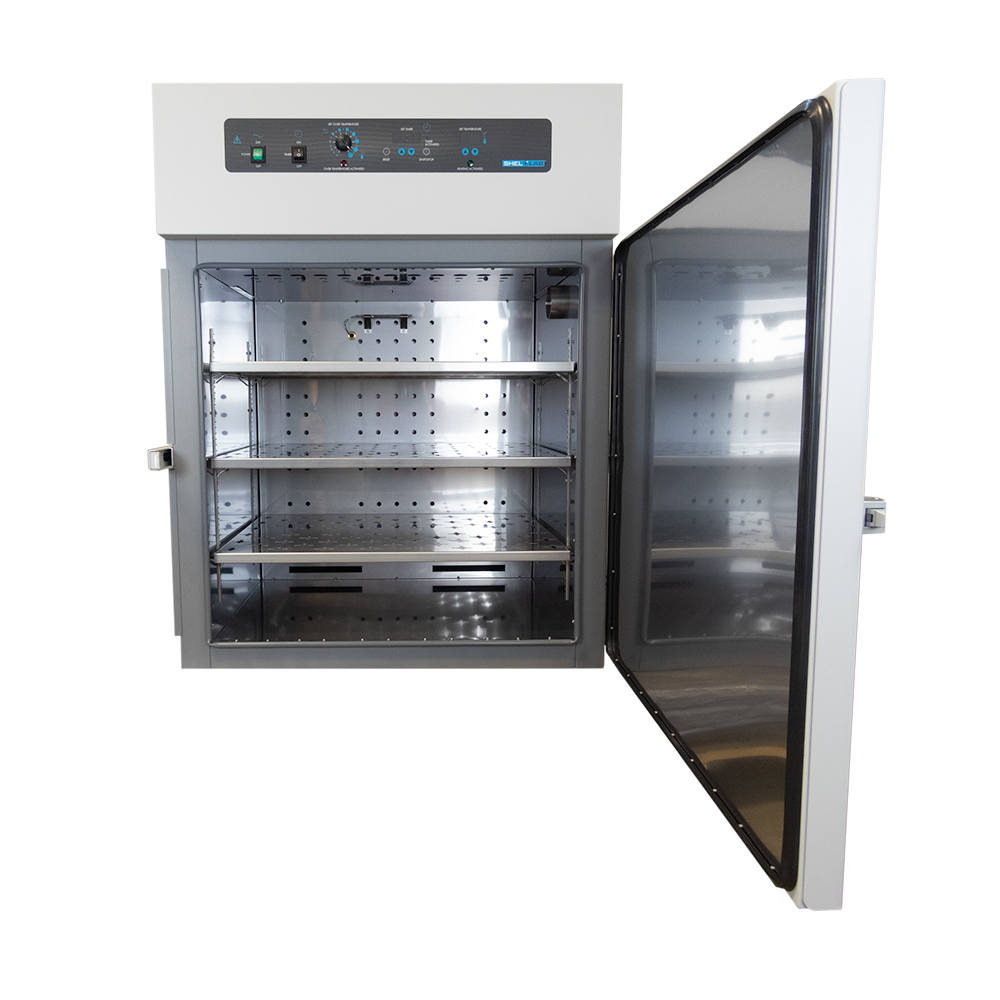

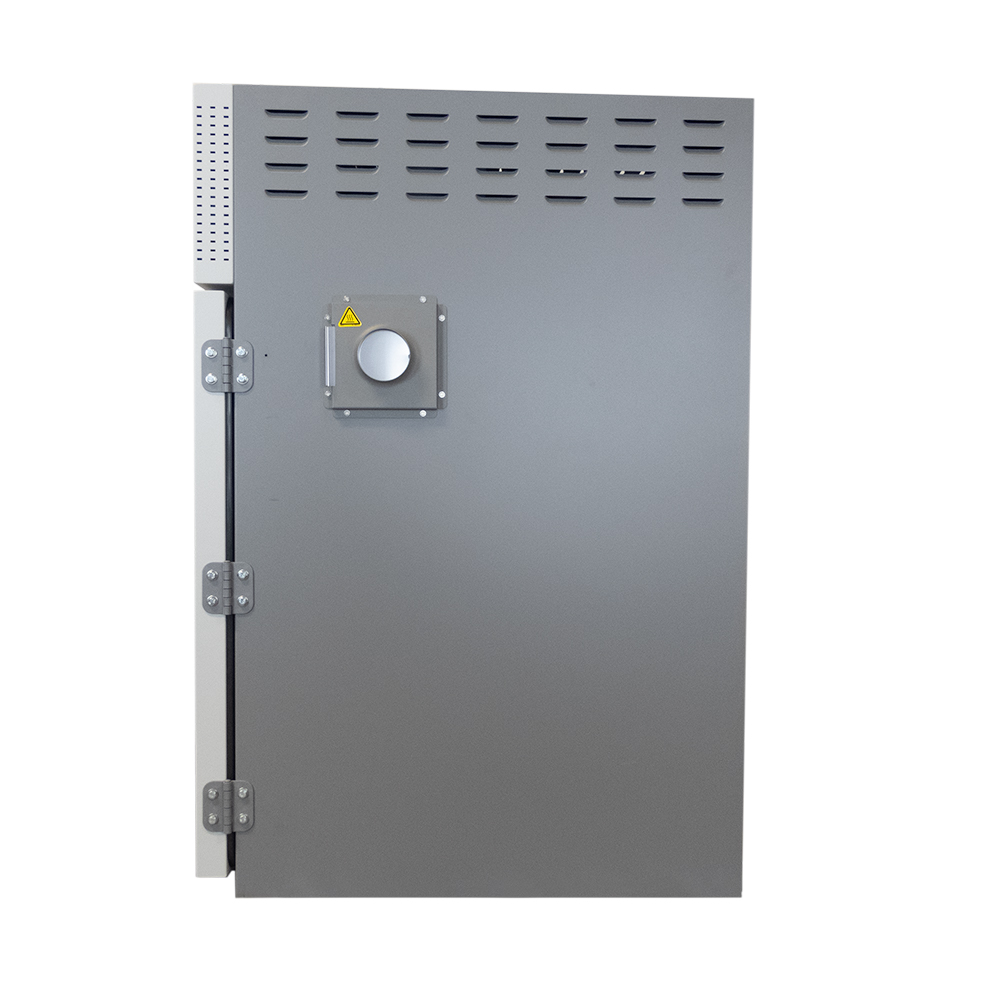

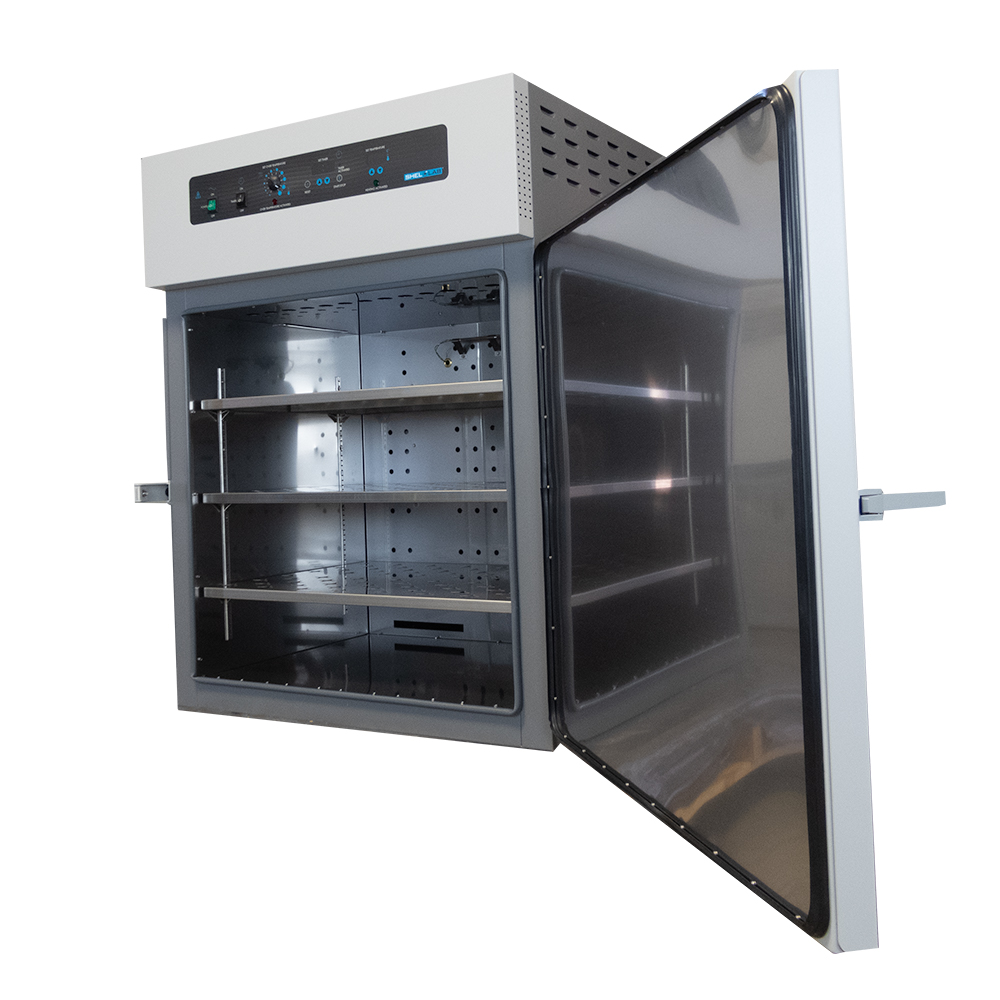

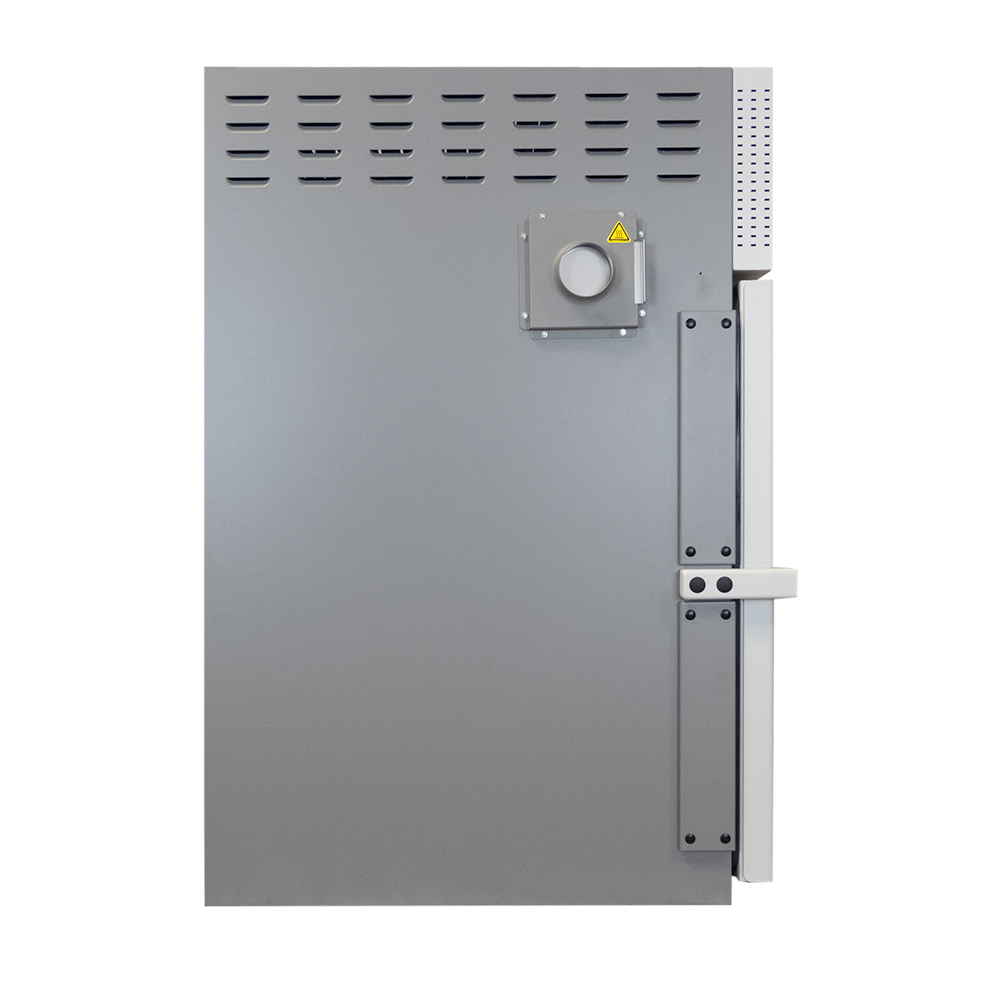

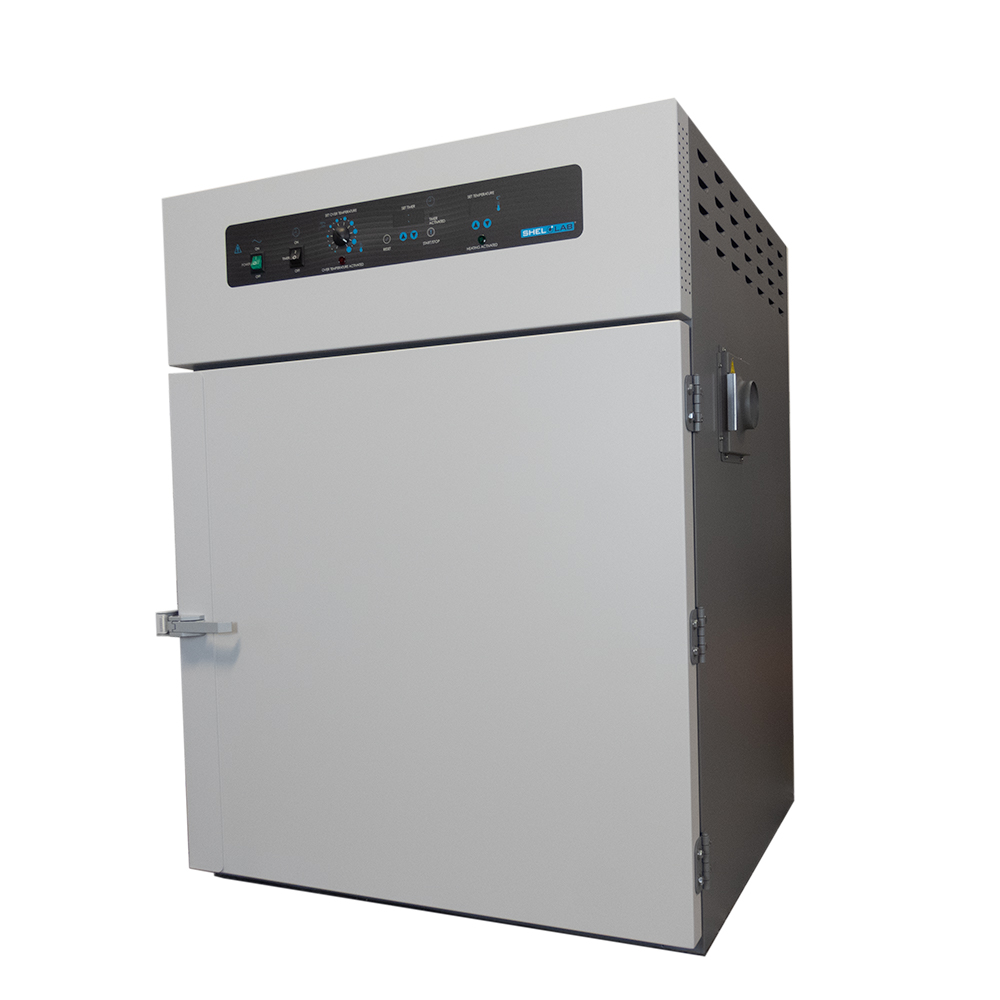

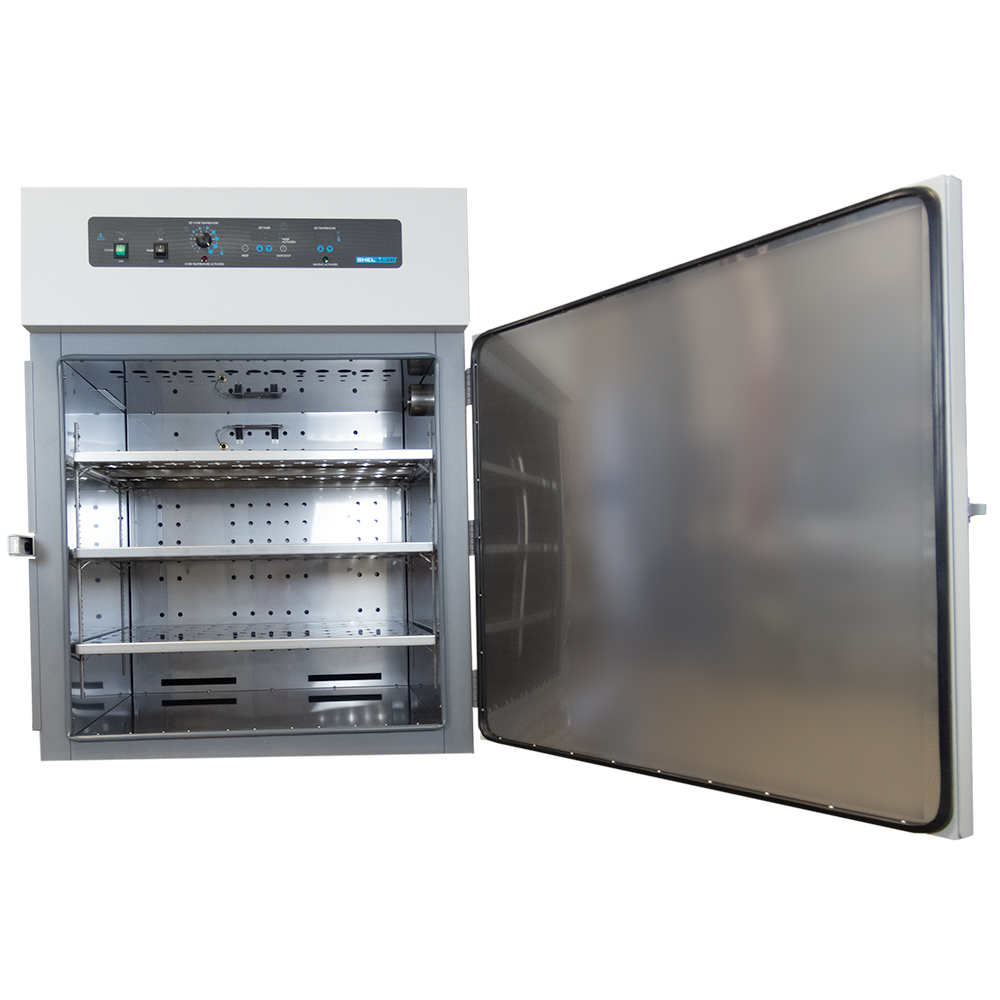

SHEL LAB SMO14-2 Forced Air Laboratory Oven, 14.6 cu. ft., 230V

Item#: SMO14-2
The SHEL LAB SMO14-2 features 14 cubic feet of economical oven space (consider the SMO14HP-2 for the same amount of space with superior uniformity). The independent overtemperature safety feature is user adjustable and provides added safety. The forced, blower-assisted airflow design offers excellent temperature uniformity and fast recovery. A turbo blower and heavy-duty motor combine to direct air over the shelves and samples for even, constant drying, curing and baking.These units are especially ideal for glassware drying.

There are several models to choose from in the forced air product line, with varying sizes and control features. The large capacity units are perfect for high volume sample and drying applications, including production processes.

$6,228.00 $5,605.20

Add to wishlist
REQUEST PROPOSAL
Supplier:
  • EXTERIOR DIMENSIONS (W × D × H): 39.1 × 34 × 48 (993 mm × 864 mm × 1219 mm)
  • INTERIOR DIMENSIONS (W × D × H): 30.8 × 24.8 × 31 (782 mm × 630 mm × 788 mm)
  • VOLUME: 14.6 cu.ft. (413 L)
  • SHELF DIMENSIONS (W × D): 30.1 × 24 (765 mm × 610 mm)
  • UNIT WEIGHT: 280.0 lbs (127.3 kg)
  • INTERIOR METAL: 430 SST
  • EXTERIOR METAL: Painted Cold Roll Steel
  • OPERATING TEMPERATURE RANGE: Amb +15C - 260C
  • TEMPERATURE UNIFORMITY – MIDRANGE: 3 °C
  • TEMPERATURE STABILITY – MIDRANGE: 0.4 °C
  • CONTROLLER TYPE: Digital
  • DISPLAY RESOLUTION: 1 °C
  • POWER VOLTAGE, FREQUENCY AND CURRENT: 230 VAC, 50/60 Hz, 12.0 Amps
  • MAX HVAC LOAD: 6400 BTUs/hr
  • SAFETY CERTIFICATIONS: UL 61010-1, EN 61010-1, CSA 61010-1, CE
  • Three inch Adjustable Exhaust Port
  • Stainless Steel Shelves
  • Independent Over-temperature Safety
  • High Temperature Silicone Door Seal
  • Added docking collars to intake and exhaust ports to allow ducting to be attached for venting exhaust out of the workspace
  • Shelf standards moved to the sides of the unit for easier shelf installation
  • No Exposed Heating
  • Wrap Around Insulation
  • Durable Powder Coat Paint Exterior Finish
  • Digital Timer
  • 24 Month Limited Warranty

Large Capacity Forced Air Ovens-Brochure

Download

Operational Manual- SMO14-2 SMO28-2

Download
