SPECTROstar Nano

Item#: SPECTROstar-Nano

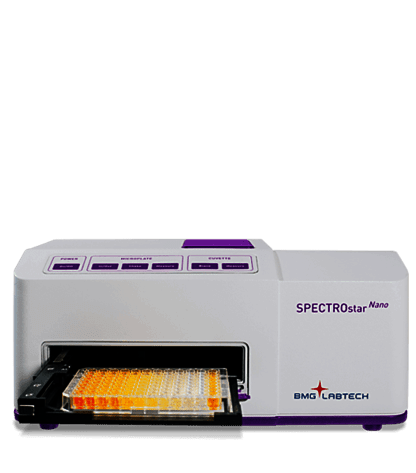

BMG LABTECH’s innovative absorbance microplate reader has the flexibility to perform assays quickly and easily in both microplates or via the built-in cuvette port. This spectrometer-based absorbance microplate reader captures a full UV/visible spectrum in less than 1 sec/well. Its speed, simple push button operation, and capacity to store individual assay protocols make the SPECTROstar® Nano the leading microplate reader for absorbance measurements.

REQUEST PROPOSAL
Supplier:
  • Detection Modes

    UV/vis absorbance spectra

  • Measurement Modes

    Endpoint and kinetic
    Spectral scanning (absorbance)
    Well scanning

  • Microplate Formats

    6 to 1536-well plates, user-definable
    LVis Plate with 16 low-volume microspots (2 μL)

  • Microplate Carrier

    Robot compatible

  • Light Sources

    High energy xenon flash lamp

  • Detectors

    CCD Spectrometer

  • Wavelength Selection

    UV/vis absorbance spectrometer
    Full spectra or 8 distinct wavelengths in < 1 sec / well

  • Spectral Range

    220 - 1000 nm

  • Sensitivity

    Full spectrum captured in < 1 s/well
    Selectable spectral resolution: 1, 2, 5, and 10 nm
    OD range: 0 to 4 OD
    Accuracy: < 1% at 2 OD
    Precision: < 0.5% at 1 OD and < 0.8% at 2 OD

  • Read Times

    Full spectrum from 220 to 1000 nm in less than 1 sec/well

  • Shaking

    Linear, orbital, and double-orbital with user-definable time and speed

  • Purge Gas Vent

    System to inject an atmosphere or to pull a vacuum into the reader

  • Incubation

    +3°C above ambient up to 45 °C

    The upper heating plate of the incubation chamber operates at 0.5 °C more than the lower plate. This prevents condensation build-up on the lid or sealer.

  • Software

    Multi-user Reader Control and MARS Data Analysis Software included
    FDA 21 CFR Part 11 compliant

  • Dimensions

    Width: 36 cm, depth: 50 cm, height: 16 cm; weight: 10 kg

  • Optional Accessories
  • LVis Plate

    Sample capacity: sixteen separate microdrop wells for 2 µL samples; one standard cuvette position for up to 1 mL samples.
    Quality control internal standards (optional): four NIST traceable optical density filters (approximate values of 0.1, 0.3, 0.6 and 1.0 OD); one holmium oxide filter for wavelength accuracy.
    Dimensions: conforms to SBS standards for microplates.

  • THERMOstar

    Microplate incubator and shaker

The SPECTROstar Nano is equipped with BMG LABTECH’s ultra-fast UV/vis spectrometer, which allows users to measure full-spectrum absorbance (220 – 1000 nm) in less than 1 second per well. It is the ideal instrument to read all absorbance assays in a microplate or cuvette – with many common assay protocols predefined and available at the click of the mouse.

Features

  • High-speed absorbance measurements
  • Measurements in up to 1536-well plates
  • Integrated cuvette port
  • LVis Plate compatibility
  • Incubation up to 45 °C
  • Multiple shaking options
  • Well scanning with up to 900 data points per well
