- Power Supply: 1,050W
- Current: 11A
- Phase: 1
- Chamber Volume: 2 gallons (7.5L)
- Chamber Dimensions (Dia. X D): 7” x 12” (17.8 cm x 30.5 cm)
- Tray Dimensions (W x D x H): 4.7” x 11.6” x 0.8” (12 cm x 29.5 cm x 2 cm)
- Overall Dimensions W x D x H): 17” x 16” x 12.5” (43.2 cm x 40.6 cm x 31.8 cm)
- Bottom Tray to Top of Chamber: 5”
- Reservoir Volume: 0.8 gallons (3L)
- Minimum Water: 0.21 gallons (0.8L)
- Number of Stainless Steel Trays: 3
- Net Weight: 55 lbs (25kg)
- 4980 Erlenmeyer Flask Size: 125ml = 5
- Nema Plug: 120V (5-15R)
- Max. Allowable Working Pressure: 2.76 bar (40 psi)
- Air Pump Fuse: 2.0 amps

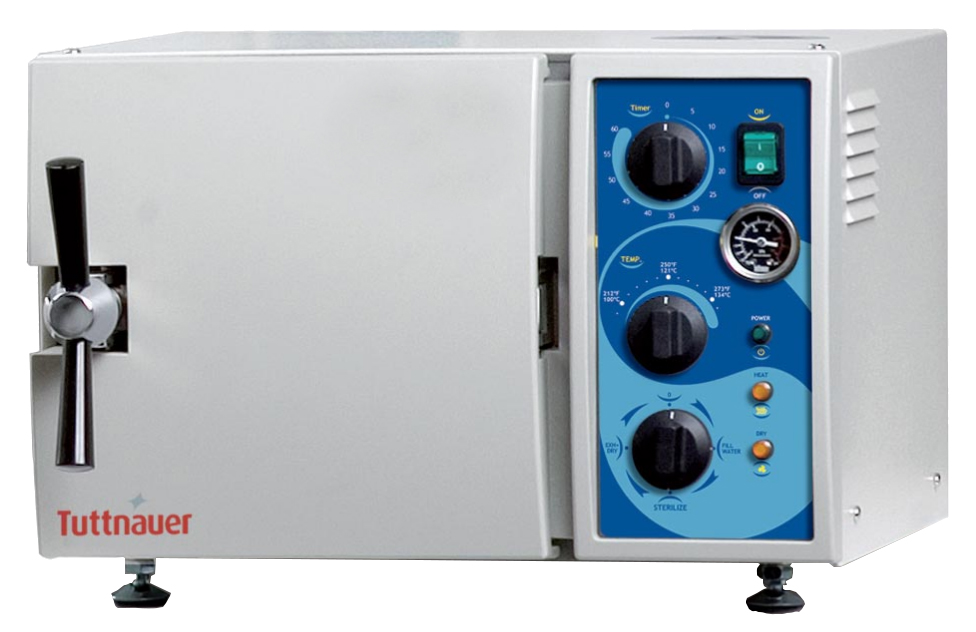

Tuttnauer Model 1730M Benchtop Analog Steam Sterilizer | 120V
Item#: 023210002Tuttnauer benchtop autoclaves provide a safe benchtop steam sterilization solution for your lab. This economical, manually operated model features analog controls and gauges for simple operation. If you're tight on space, the new compact model 1730M is the perfect choice for your basic sterilization needs.
$5,795.50 $5,505.73
- 60-minute cycler timer
- Temperature selection from 100C to 134C (212F to 273F)
- Combination pressure and temperature gauge with peak indicator
Standard Operating Features:
- Self-contained design eliminates external plumbing and hardwiring for easy installation
- Simple operation
- ASME- stamped, 316 L stainless steel chamber ensures long-lasting reliability, durability and high corrosion resistance
- Fast/slow exhaust; fast exhaust allows quick cycle time of solids and slow exhaust prevents media and liquid boil-over
- Closed-door drying system maintains sterility
- Drying cycle removes residual moisture after sterilization
- Continuous pressure purge eliminates air pockets and ensures thorough, even sterilization
- Large-capacity reservoir provides ample water supply to avoid frequent fill-ups; the water drain is conveniently located on top to allow for quick and easy cleaning of the reservoir
- Automatic shut-off feature saves energy
- Industry leading 3 year warranty
- Standard Safety Features:
- Heat-insulated, double-locking door protects against accidental burns; the door cannot be opened while the chamber is under pressure
- Automatic low water level shut-off prevents damage to the heater elements if there is insufficient water for the sterilization cycle
- Over-temperature cut-off and over-pressure valve ensures safe operation
- UL- and CSA-approved
Tuttnauer- Model M & MK Operations
